VDX3-ETX-L-DEV

Name: VDX3-ETX-L-DEV
Brand: ICOP
SKU: 07701100
Availability: InStock

ICOP

Ціна за запитом

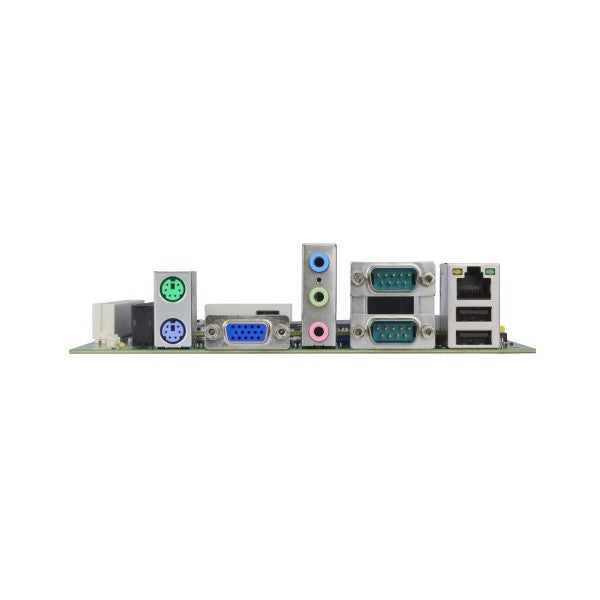

VDX3-ETX Parallel port version Development Board, 2xPS/2, DB15 VGA, Audio, 2xDB9 COM, GbE LAN, 2xUSB, ATX power

Специфікація

Specification

System Architecture
Form Factor	Proprietary
Construction
Type	Fanless
Graphic
Interfaces	VGA
Ethernet
Total Ethernet	1
10/100/1000 Mbit/s	1
Interfaces
COM Total	2
USB Total	4
USB 2.0	4
LPT	LPT
Extension Slots
Total	2
PCI	1
ISA	1
Connectors
Internal Ports	24-pin ATX, 4-pin I2C, 26-pin LPT, 30-pin LVDS, 8-pin USB 2.0, 2-pin DC-In Power, 16-pin LAN
Connectors	2xDB9, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, RJ45 Ethernet, 2xUSB, Audio (in/out/Mic)
Dimensions and weight
Width	175 mm
Length	175 mm
Operating Conditions
Operating Temperature	-20...70 °C
