VES30-8S-DIN

Ціна за запитом

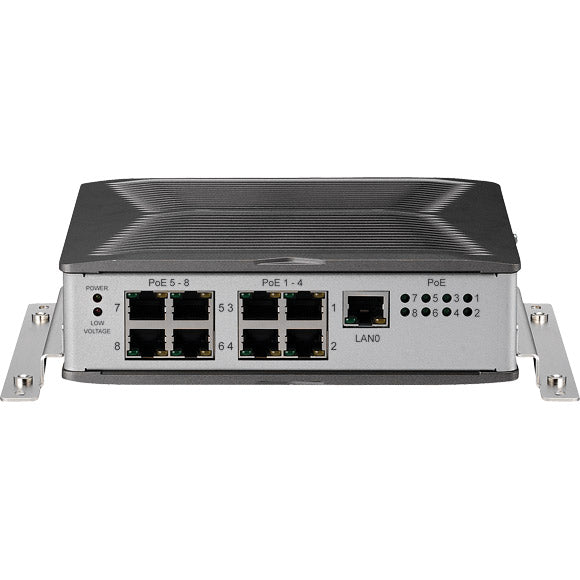

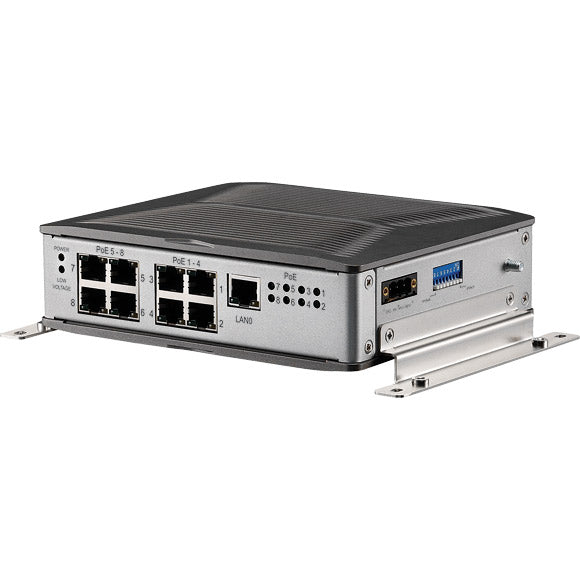

DIN-Rail Version, Gigabit Ethernet Switch with 8x 10/100/1000 PoE RJ-45 ports (802.3af), 1x 10/100/1000 RJ-45 port, 9-36V DC Input Power, Ignition Detection, E13 Mark, -30..70C Operating Temperature

Specification

Ethernet

Total Ethernet9
10/100/1000 Mbit/s9
Type 10/100/1000 Mbit/sRJ-45

Switch Properties

ManagedNo

Supported Protocols

IEEE StandardIEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control

LED / Controls

Setup of Operation ModeBy Switches

System Power Input

Input Voltage DC9...36 V

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationDesktop, Wall, DIN-Rail mount

Dimensions and weight

Width167 mm
Depth139.6 mm
Height58.8 mm

Operating Conditions

Operating Temperature-30...70 °C
Vibration1g

Standards and Certifications

CertificationsCE, FCC Class B
MIL-STD-810MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
VehicleE-Mark
