Construction |
| Construction Chassis | ABS plastic chassis |
| Mounting Configuration | Desktop, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP54 |
| Type | Fanless |
Display |
| Display Type | LCD TFT |
| Diagonal | 7 " |
| Maximum resolution | 800x480 Dots |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 600~1 |
Touch Screen |
| Touch Screen Type | Resistive |
CPU |
| Processor Installed | Intel Atom E3825 |
| Max CPU frequency | 1.33 GHz |
Memory |
| Form-factor | DDR3L |
| Default on Board Memory | 2 GB |
| Maximum Memory | 4 GB |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi |
| Wi-Fi Standard | Yes |
Interfaces |
| COM Total | 2 |
| RS-232 | 1 |
| RS-485 | 1 |
| USB Total | 1 |
| USB v3.x | 1 |
Industrial Interfaces |
| CAN Port | 2 |
Drive interfaces |
| mSATA | 1 |
| MicroSD | 1 |
Extension Slots |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Additional Functions |
| GPS | GPS |
LED / Controls |
| LED | 1xHDD LED, Power LED, Power Fail, WWAN LED |
| Controls | On/Off, 1xReset, Control Buttons, Function Keys |

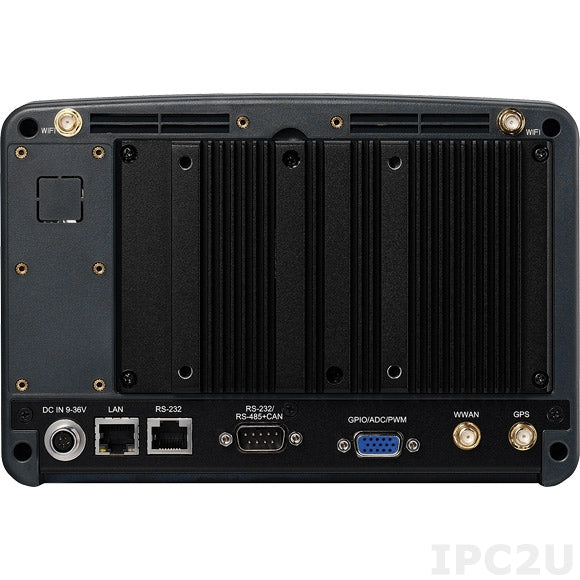

Connectors |
| Connectors | DB9, RJ45, RJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, DB15 Female |
System Power Input |
| Input Voltage DC | 9...36 V |
Software |
| Operating System Compatibility | Android, Windows Embedded Compact 7, Ubuntu |
Dimensions and weight |
| Width | 213 mm |
| Height | 145 mm |
| Depth | 50 mm |
Operating Conditions |
| Operating Temperature | -20...60 °C |
| Vibration | Operating: MIL-STD-810G. 514.6 Procedure 1. Category 4; Storage: MIL-STD-810G. 514.6 Procedure 1. Category 24 |
| Shock | Operating: MIL-STD-810G. Method 516.6. Procedure I. trucks and semi-trailers=20g; Crash hazard: MIL-STD-810G. Method 516.6. Procedure V. ground equipment=75g |
Standards and Certifications |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Safety | EN 60950-1 |
| Vehicle | SAE J1113, SAE J1455, ISO 7637-2 |
