Construction |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP65 |
| Type | Fanless |
Display |

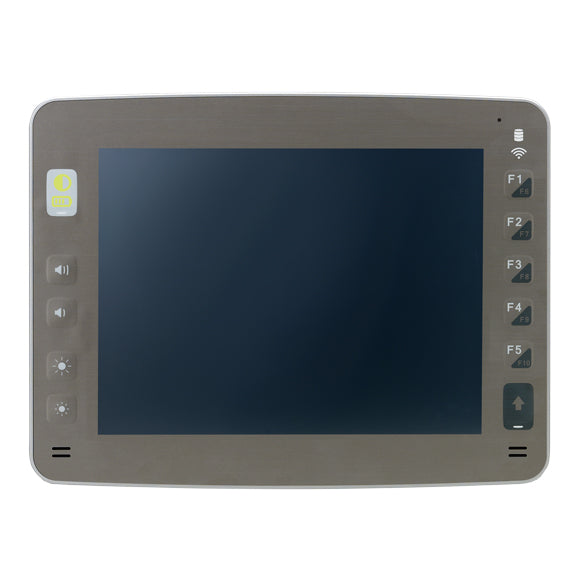

| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 1200 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen |
| Touch Screen Type | Resistive |
CPU |
| Processor Installed | Intel Atom x5-E3930 |
| Max CPU frequency | 1.8 GHz |
Memory |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 3 |
| USB 2.0 | 3 |
Drive interfaces |
| CFast Slots | 1 |
Storage Cage |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls |
| LED | Power LED, WLAN LED, SSD LED |
| Controls | On/Off, Control Buttons, Function Keys |
Connectors |

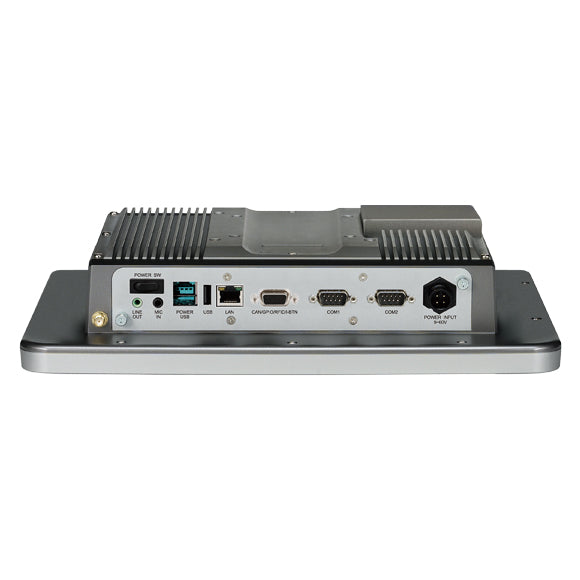

| Connectors | 2xDB9, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB15 CAN Bus, CFast slot |
System Power Input |
| Input Voltage DC | 9...60 V |
Power Supply |
| Supported Types of Power Supply | External power adapter AC/DC |
Software |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight |
| Width | 289.98 mm |
| Height | 229.97 mm |
| Depth | 77.95 mm |
Operating Conditions |
| Operating Temperature | -30...60 °C |
Standards and Certifications |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Automotive | e13 Mark |
