Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 1300 Cd/m2 |
| Contrast Ratio | 600~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Core i7-2610UE |
| Max CPU frequency | 2.4 GHz |
Chipset | |
| Chipset | Intel ICH10R |
Memory | |
| Form-factor | DDR3 |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 2 GB |
| Maximum Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 1 |
| USB 2.0 | 1 |
Industrial Interfaces | |
| CAN Port | 2 |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
Extension Slots | |
| Total | 3 |
| Mini-PCIe/Mini Card | 3 |
Additional Functions | |
| GPS | GPS |
| Watchdog timer type | Software |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off, Control Buttons, Function Keys |
Connectors | |

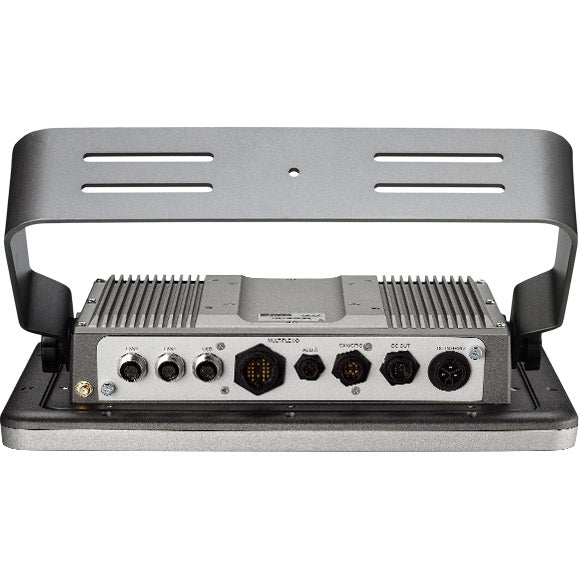

| Connectors | 12V DC Output, 1x6-pin CONN, 1x10-pin CONN, 1x22-pin CONN (Multi-I/O), 1x8-pin CONN (USB), 1x8-pin CONN (LAN) |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 2009 |
Dimensions and weight | |
| Width | 290 mm |
| Height | 230 mm |
| Depth | 68 mm |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Vibration | Vibration (random): 2g @5~500Hz; Vibration Operating: MIL-STD-810G. 514.6 Procedure 1. Category 4; Storage vibration: MIL-STD-810G. 514.6 Procedure 1. Category 24 |
| Shock | Shock Operating: MIL-STD-810G. Method 516.6. Procedure I. trucks and semi-trailers= 20g; Crash hazard: MIL-STD-810G. Method 516.6. Procedure V. ground equipment= 75g |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Safety | EN 60950-1 |
