Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP65 |
| Material Front Side (Panel) | ABS plastic |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 1200 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
LED / Controls | |
| LED | Power LED |

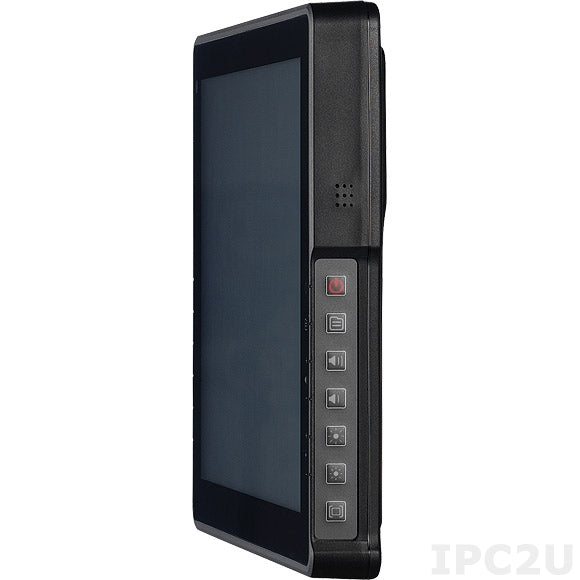

| Controls | On/Off, Control Buttons |
Connectors | |

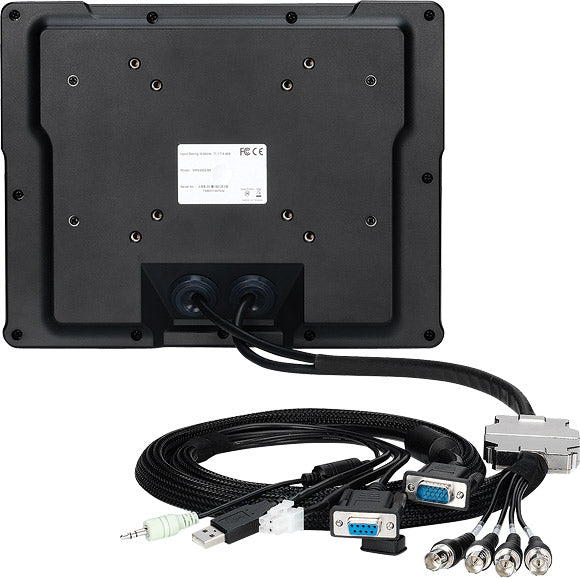

| Connectors | DB9, DB15 VGA, 1xUSB, Line In, DC Input, CVBS |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 18 W |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Vibration | Random: 2.5g. 5~500 Hz |
| Shock | Operating: MIL-STD-810F. Method 516.5. Procedure I. Trucks and semi-trailers= 20g |
Dimensions and weight | |
| Width | 256.5 mm |
| Height | 202.1 mm |
| Depth | 31.5 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
