Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall |
| Protection Level of Chassis | IP50 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron N3350 |
Memory | |
| Socket Type | 1xSODIMM 204pin |
| Maximum Memory | 8 GB |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
Industrial Interfaces | |
| CAN Port | 1 |
Audio | |
| Audio Controller | Realtek ALC892 |
Extension Slots | |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
Connectors | |

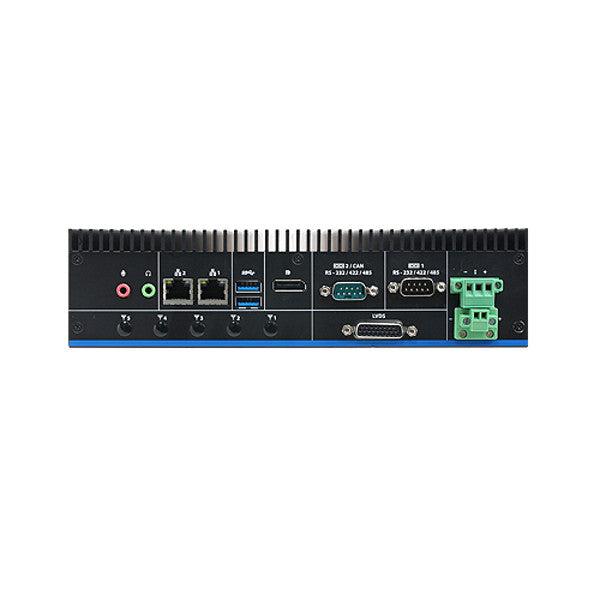

| Connectors | LVDS, 2xRJ45 Ethernet, 4xUSB, Display Port, 2xLine Out, 2xMic In |
Software | |
| Operating System Compatibility | Android, Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 239 mm |
| Height | 186 mm |
| Depth | 62 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Vehicle | E-Mark |
