Construction | |
| Construction Chassis | Plastic Chassis |

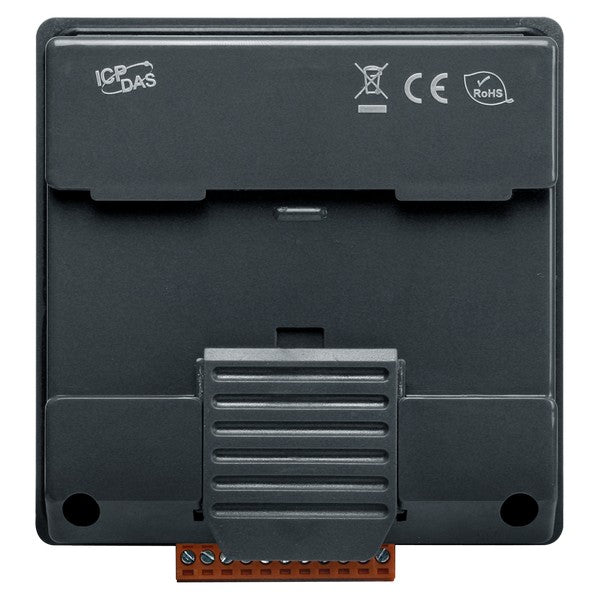

| Mounting Configuration | Panel, DIN-Rail mount |
| Protection Level of Chassis | IP65 |
Display | |

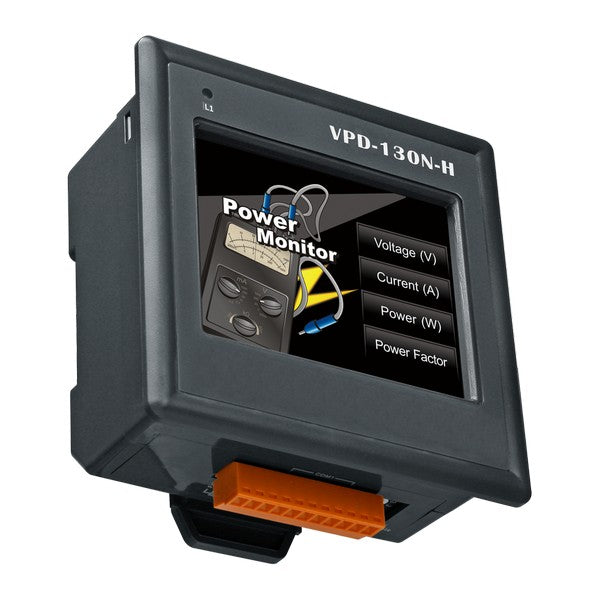

| Display Type | LCD TFT |
| Diagonal | 3.5 " |
| Maximum resolution | 320x240 Dots |
| Brightness | 270 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
Installed drive | |
| Flash Memory Capacity | 16 MB |
Interfaces | |

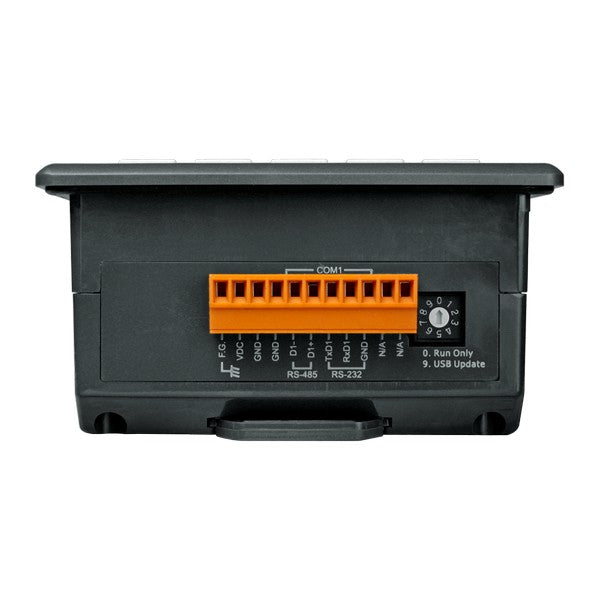

| COM Total | 1 |
| RS-232/485 | 1 |
Supported Protocols | |
| Industrial Protocols | Modbus RTU slave, Modbus RTU master, DCON master |
Software | |
| Development Software | HMIWorks |
| Programming Method | Ladder Diagram, C/C++ |
System Power Input | |
| Input Voltage DC | 12...48 V |
Dimensions and weight | |
| Width | 103 mm |
| Depth | 53 mm |
| Height | 103 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
