Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Panel, Wall |
| Protection Level of Chassis | IP65 |

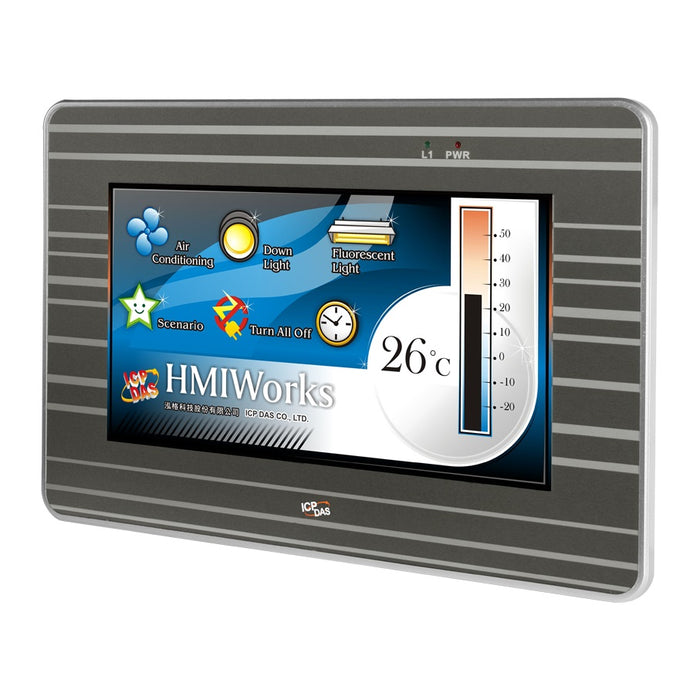

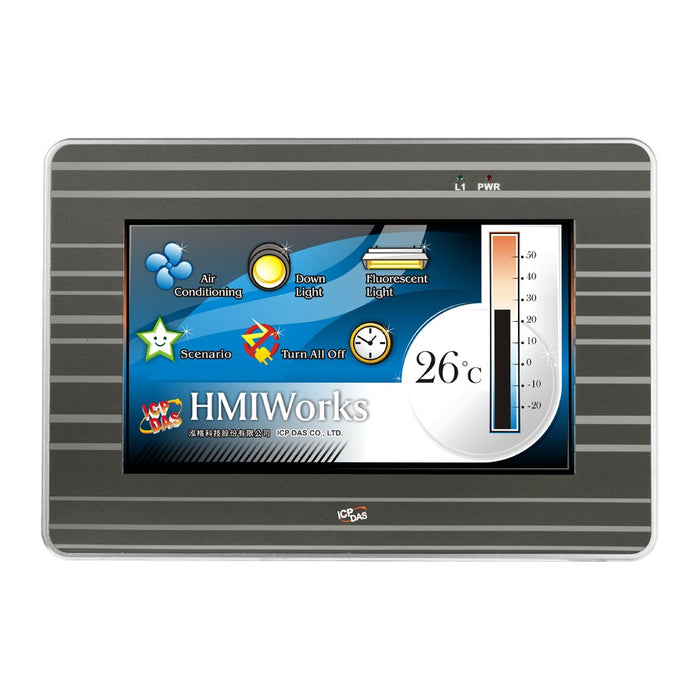

Display | |
| Display Type | LCD TFT |
| Diagonal | 7 " |
| Maximum resolution | 800x480 Dots |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
Installed drive | |
| Flash Memory Capacity | 16 MB |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| RS-232/485 | 2 |
| Isolation of COM Ports | 2.5 kV (RS-232/485) |
Supported Protocols | |
| Industrial Protocols | Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master, DCON master |
Software | |
| Development Software | HMIWorks |
| Programming Method | Ladder Diagram, C/C++ |
System Power Input | |
| Input Voltage DC | 12...48 V |
Dimensions and weight | |
| Width | 217 mm |
| Depth | 33 mm |
| Height | 153 mm |
Operating Conditions | |
| Operating Temperature | -10...60 °C |
