Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Wall VESA 75 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 1200 Cd/m2 |
| Contrast Ratio | 900~1 |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6414RE |
| Max CPU frequency | 1.5 GHz |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB 2.0 | 2 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| M.2 | 1 |
| mSATA | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

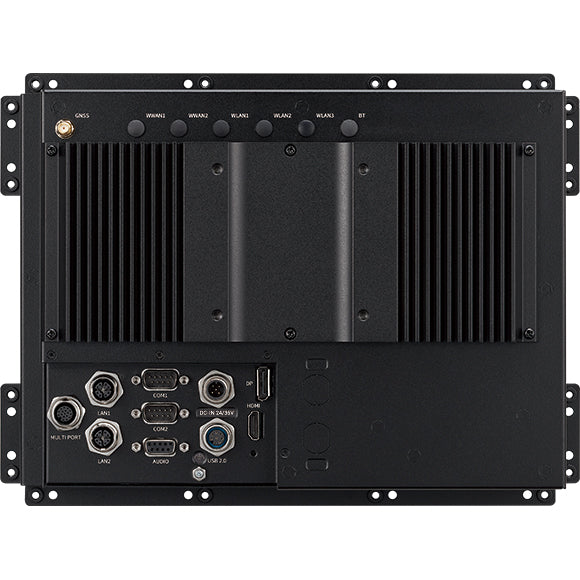

| Connectors | 2xDB9, HDMI, Audio, Display Port, M12, M12 USB, M12 DC-in, 4x8-pin M12 LAN |
System Power Input | |
| Input Voltage DC | 14...48 V |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 309 mm |
| Height | 230.6 mm |
| Depth | 67.7 mm |
Operating Conditions | |
| Operating Temperature | -30...70 °C |
| Vibration | Operating: MIL-STD-810H. 514.8C Procedure 1. Category 4; Storage: MIL-STD-810H. 514.8E Procedure 1. Category 24 |
| Shock | Operating: MIL-STD-810H. Method 516.6. Procedure I. trucks and semi-trailers = 40g; Crash hazard: MIL-STD-810H. Method 516.6. Procedure V. ground equipment = 75g |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Rolling Stock | EN 50155, EN 45545 |
