Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in |
| Protection Level of Chassis | IP65 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 2 GB |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-422/485 | 1 |
| USB Total | 3 |
| USB 2.0 | 2 |
| USB v3.x | 1 |
Digital Input-Output | |
| Channels of DIO | 8 |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 4 |
| Mini-PCIe/Mini Card | 4 |
| SIM Card slots | 2 |
Antenna characteristics | |
| Cellular interfaces | 3G (Optional) |
Additional Functions | |
| GPS | GPS |
Connectors | |

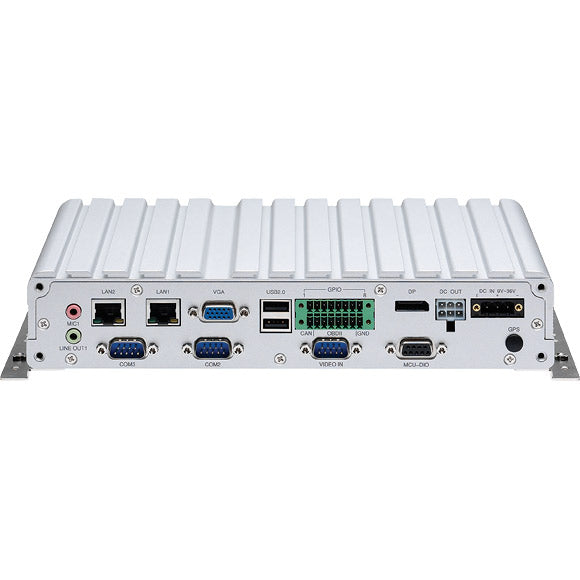

| Connectors | 3xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, Display Port, DC input (terminal block), 12V DC Output, GPIO (terminal block), DB9 Female, 2xLine Out, 2xMic In |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 19 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Fedora |
Dimensions and weight | |
| Width | 260 mm |
| Height | 50 mm |
| Depth | 176 mm |
Operating Conditions | |
| Operating Temperature | -30...70 °C |
| Vibration | SSD: 2G @ 5...500 Hz; HDD: 1G @ 5...500 Hz |
| Shock | 20G |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Automotive | e13 Mark |
