Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i7-8700T |
| Max CPU frequency | 4 GHz |
Chipset | |
| Chipset | Intel Q370 |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 8 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Ethernet | |
| Total Ethernet | 9 |
| 10/100/1000 Mbit/s | 9 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 4 |
Digital Input | |
| Isolation DIO | Yes |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 3 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 3 |
| SIM Card slots | 3 |
Antenna characteristics | |
| Cellular interfaces | 3G (Optional) |
Connectors | |

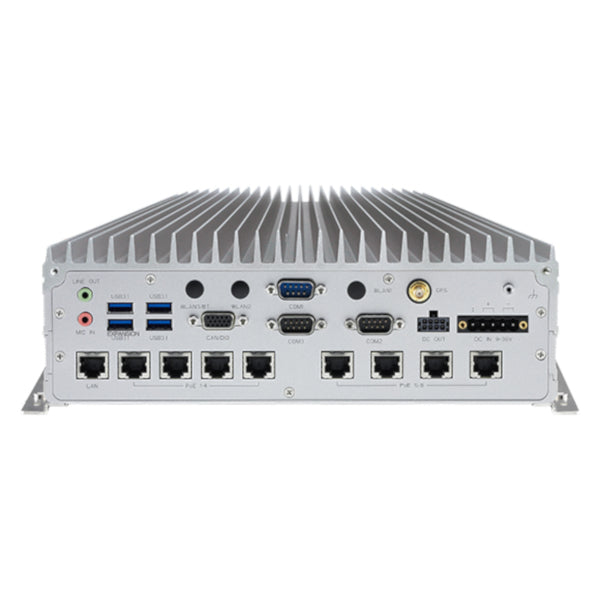

| Connectors | 2xDB9, DB15 VGA, HDMI, 3xUSB, Mic In, Line Out, DC Input, DB9 GPIO, 12V DC Output, 9xRJ45 Ethernet |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 260 mm |
| Height | 99 mm |
| Depth | 196 mm |
Operating Conditions | |
| Operating Temperature | -30...50 °C |
| Vibration | SSD: 1g @ 5..500 Hz |
| Shock | 20g |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Automotive | e13 Mark |
