Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Wall, Desktop |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i5-1145GRE |
| Socket | FCBGA 1449 |
| CPU Support Type | Core i5 |
| Max CPU frequency | 4.1 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Default on Board Memory | 8 GB |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel Iris Xe Graphics |
| Interfaces | VGA, DisplayPort, HDMI |
Ethernet | |
| Controller Type | Intel i225IT |
| Total Ethernet | 5 |
| 10/100/1000 Mbit/s | 1 |
| PoE+ 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 3 |
| USB v3.x | 3 |
Digital Input-Output | |
| Channels of DIO | 8 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 5 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 3052 B, 3042 B, 2230 E |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | Yes, 2, Micro-SIM |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
Additional Functions | |
| GPS | GPS, GLONASS |
Connectors | |

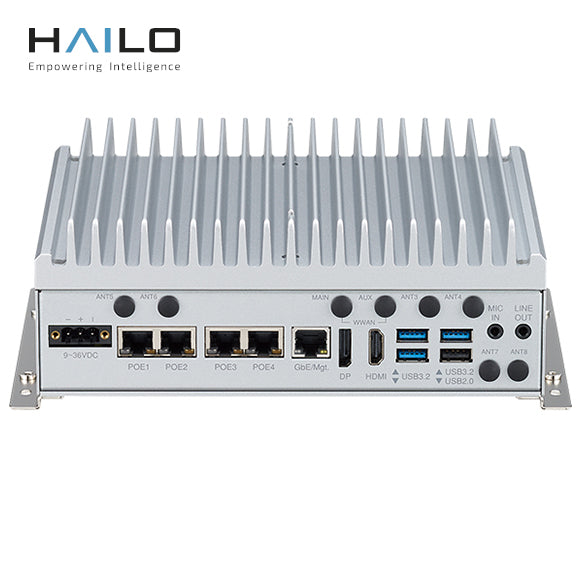

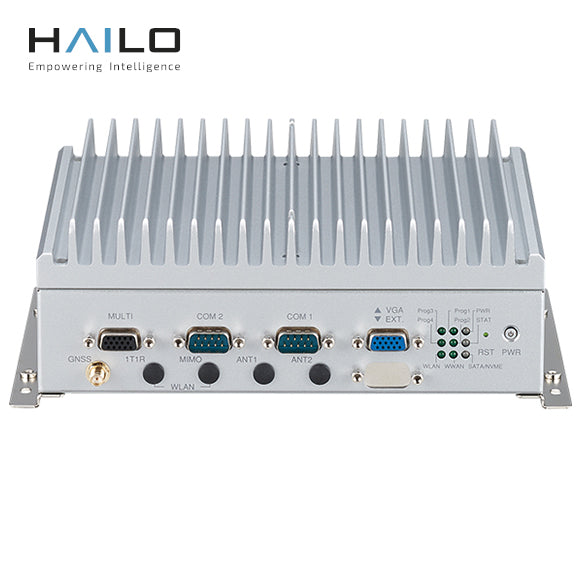

| Connectors | 2xDB9, DB15 VGA, HDMI, 5xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 2xSIM Card Slot |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows IoT Enterprise 10, Windows 11, Ubuntu 18.04 LTS |
Dimensions and weight | |
| Width | 210 mm |
| Height | 75 mm |
| Depth | 173 mm |
Operating Conditions | |
| Operating Temperature | -30...65 °C |
| Humidity | 10-95% |
| Vibration | MIL-STD-810H. 514.8C Procedure 6. Category 4; IEC 60068-2-64: 2.0g@5~500Hz |
| Shock | MIL-STD-810G. 516.6 Procedure I. trucks and semi-trailers=40g; Crash hazard: Procedure V. ground equipment=75g |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration |
| Automotive | e13 Mark |
| Vehicle | E-Mark |
