Construction | |
| Mounting Configuration | Panel, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX2 |
| Type | Fanless |
Display | |

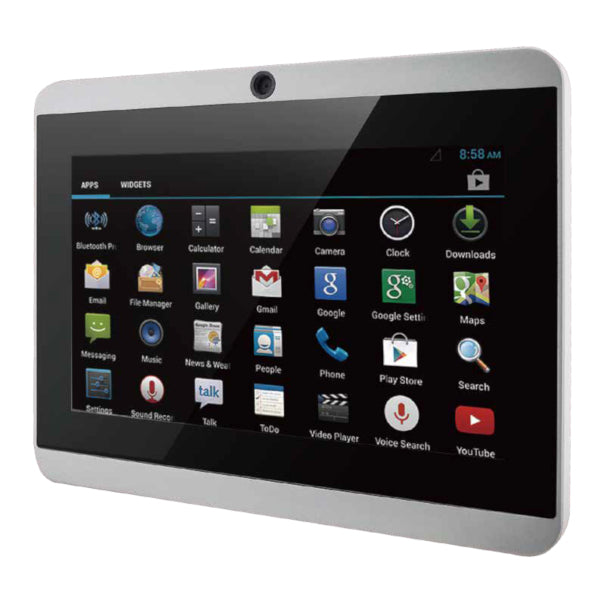

| Display Type | LCD TFT |
| Diagonal | 7 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | ARM Cortex A9 |
| CPU Support Type | ARM Cortex |
Memory | |
| Form-factor | DDR3 |
| Default on Board Memory | 1 GB |
| Maximum Memory | 2 GB |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 1 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| MicroSD | 1 |
LED / Controls | |
| LED | LED Bar |
Connectors | |
| Connectors | DB9, RJ45 Ethernet, 3xUSB, DC Input, SD card slot, Micro HDMI |
System Power Input | |
| Input Voltage DC | 9...4 V |
| Power Consumption | 10 W |
Software | |
| Operating System Installed | Android |
Dimensions and weight | |
| Width | 145.4 mm |
| Height | 189.4 mm |
| Depth | 36.1 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
