Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 3000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Kaby Lake |
| Processor Installed | Intel Core i5-7200U |
| Socket | CPU onboard |
| Max CPU frequency | 3.1 GHz |
Chipset | |
| Chipset | Intel Kaby Lake SoC |
Memory | |
| Form-factor | DDR4 |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 64 GB |
LED / Controls | |
| Controls | On/Off |
Connectors | |

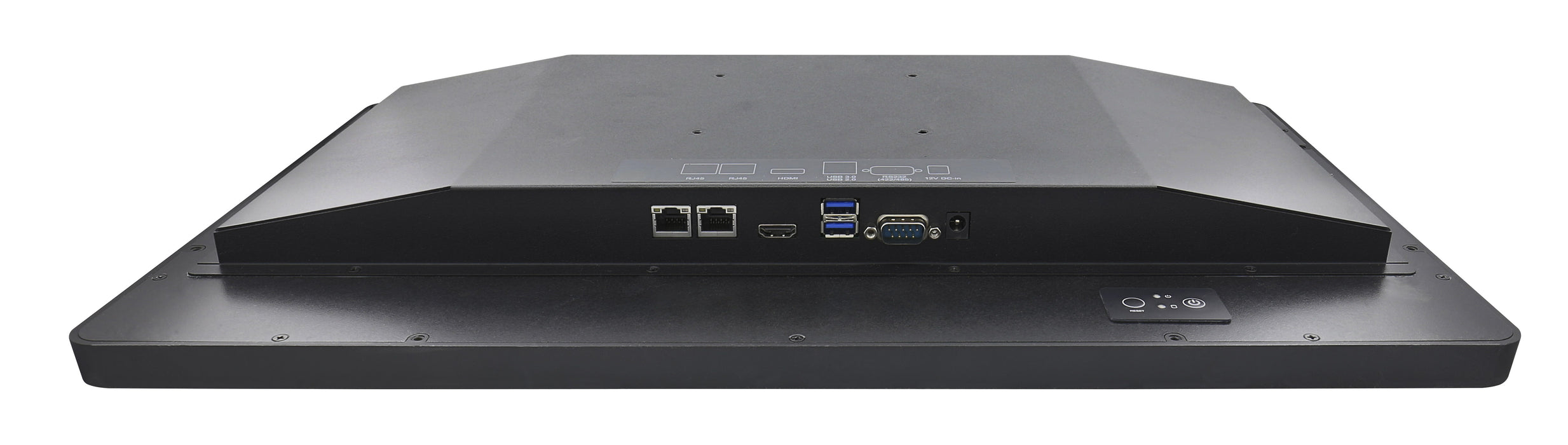

| Connectors | DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
| Power Consumption | 40 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 529 mm |
| Height | 320 mm |
| Depth | 50 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
