Construction | |
| Construction Chassis | Metal Chassis with Plastic component |

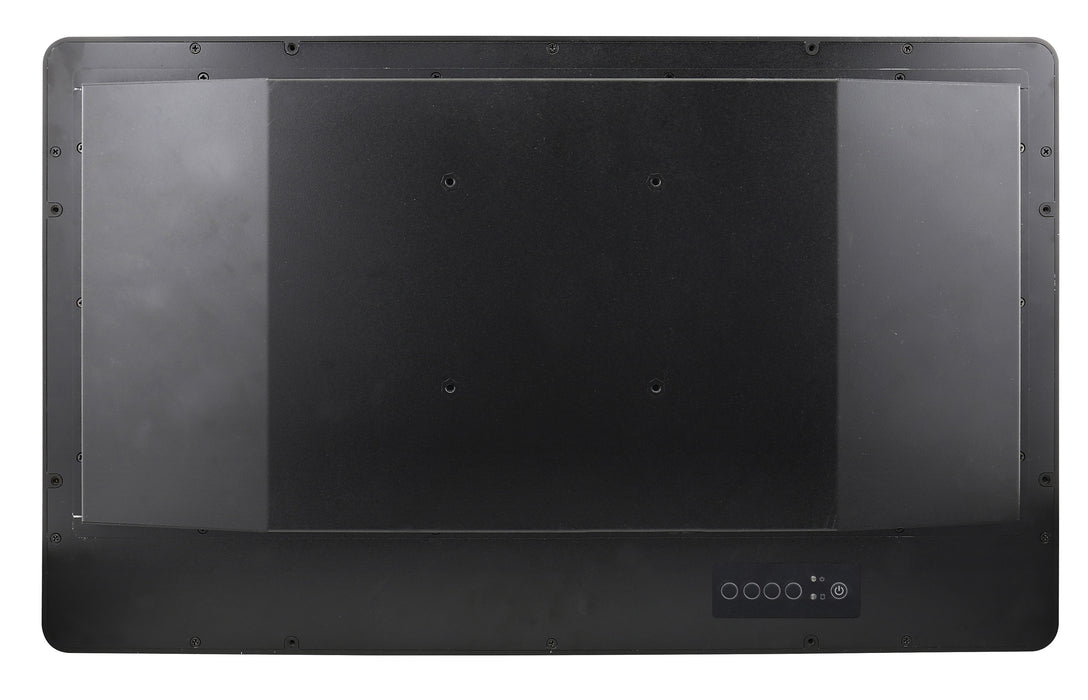

| Mounting Configuration | Panel, Wall, Wall VESA 100, VESA 200x100 |
| Protection Level of Front Side (Panel) | IP65 |
| Material Front Side (Panel) | Plastic |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 3000~1 |
| Input Interface | VGA |
Touch Screen | |
| Touch Screen Type | Capacitive |
| Interface | USB |
LED / Controls | |
| LED | Power LED |
| Controls | Control Buttons |
Connectors | |
| Connectors | DB15 VGA, DC Input, 1xUSB |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Humidity | 10-90% |
| Vibration | MIL-STD-810G Method 514.6 |
| Shock | MIL-STD-810G Method 516.6 |
| Temperature (Storage) | -10~+60 |
Dimensions and weight | |
| Width | 530.2 mm |
| Height | 321.7 mm |
| Depth | 54.9 mm |
Standards and Certifications | |
| Certifications | CE/FCC |
