System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Intel Celeron J6412 |
| Socket | FCBGA1493 |
| Max CPU frequency | 2.6 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI |
Ethernet | |
| Controller Type | Realtek RTL8111H |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 5 |
| RS-232/422/485 | 1 |
| USB Total | 8 |
| USB 2.0 | 5 |
| USB v3.x | 3 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 4 |
| PCI Express x1 | 1 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | SATA 3, 1x14-pin RS-232/422/485, 5x10-pin RS-232, 4x4-pin USB 2.0, 4-pin ATX, GPIO |

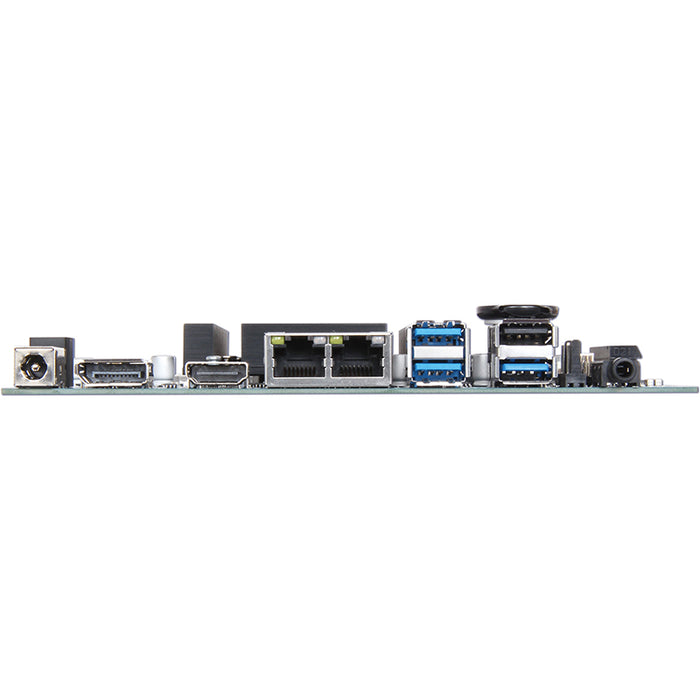

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Audio, DC Input, Display Port |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
