System Architecture | |
| Form Factor | 3.5" |
Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i5-6300U |
| Socket | CPU onboard |
| Max CPU frequency | 3 GHz |
| Number of CPU | 1 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Interfaces | LVDS, HDMI, VGA |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xUSB 2.0 |

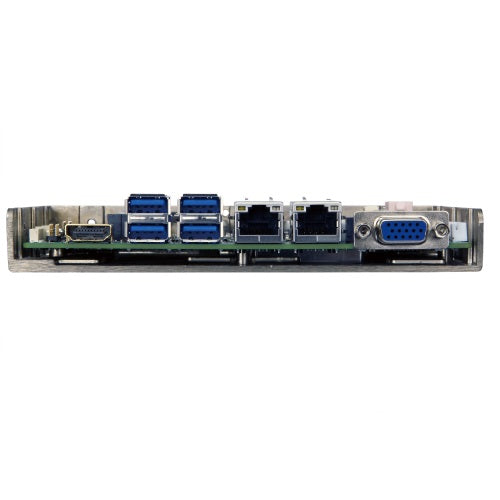

| Connectors | DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB |
Dimensions and weight | |
| Width | 146 mm |
| Length | 102 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE/FCC |
