Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom E3940 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC892 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

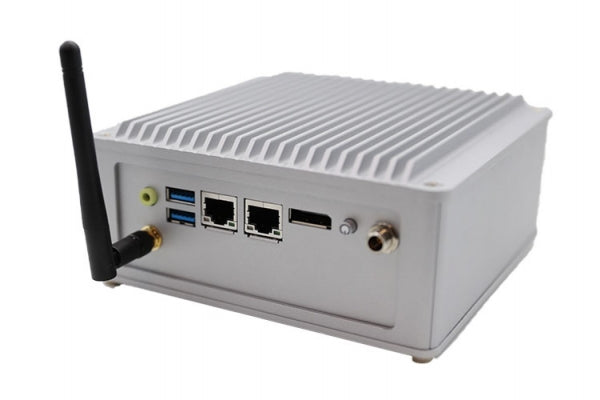

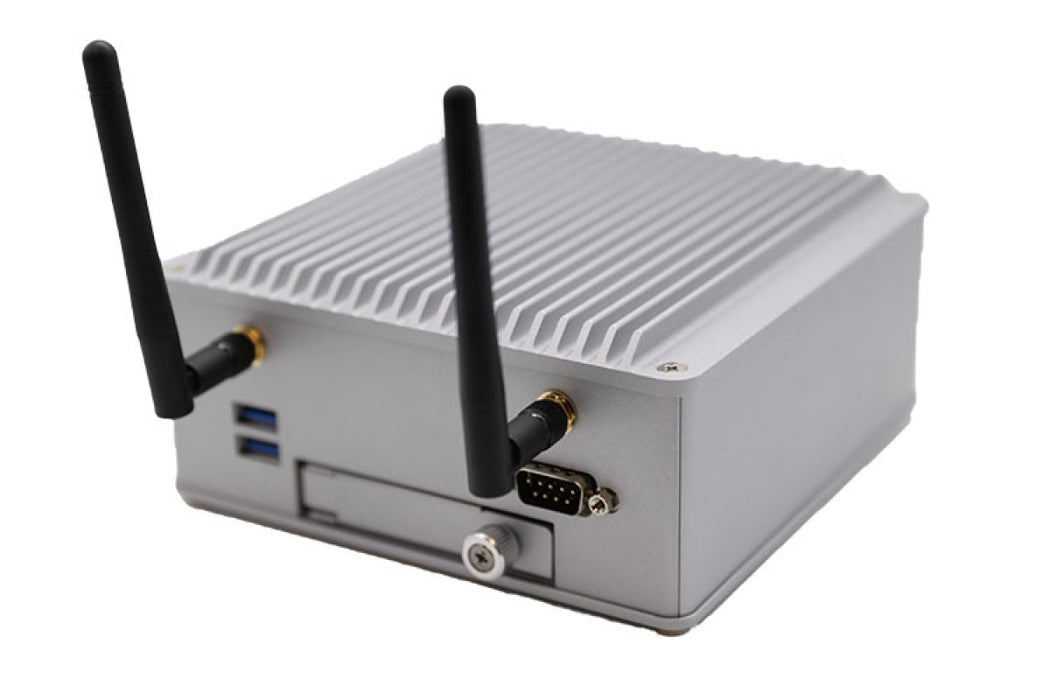

| Connectors | DB9, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 12...24 V |
Dimensions and weight | |
| Width | 149 mm |
| Height | 66 mm |
| Depth | 149 mm |
Operating Conditions | |
| Operating Temperature | -40...85 °C |
