Construction |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Wi-Fi |
| Wi-Fi Standard | 802.11b/g |
| Quantity of Wi-Fi | 1 |
Supported Protocols |
| Industrial Protocols | Modbus TCP server, Modbus UDP slave |
Analog Input |
| Total channels of analog input | 10 |
| Number of Bits | 16 Bit |
| Voltage range | +/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V |
| Current range | -20...+20 mA |
| Sampling rate | 10 Hz |
| Thermocouple | J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С |
Connectors |

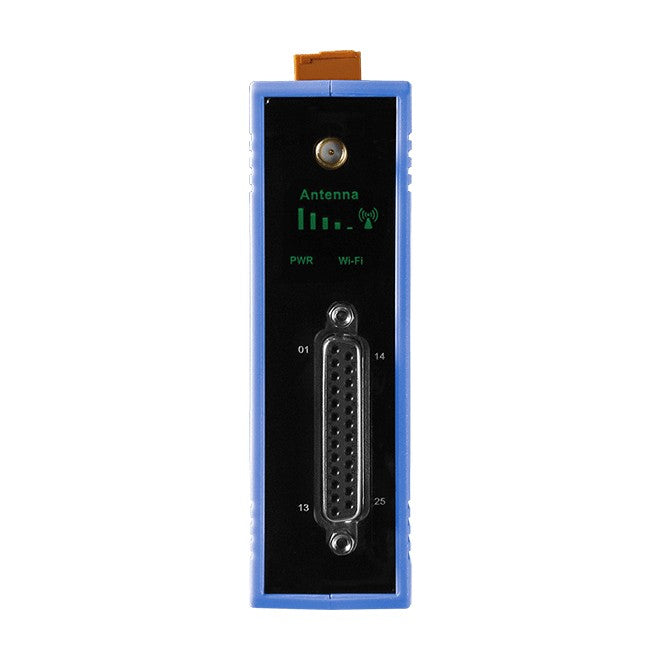

| Connectors | DB25 Female |
System Power Input |
| Input Voltage DC | 10...30 V |
Dimensions and weight |
| Width | 33 mm |
| Depth | 95 mm |
| Height | 120 mm |
Operating Conditions |
| Operating Temperature | -25...75 °C |
