WF-2042

Name: WF-2042
Brand: ICP DAS
SKU: 06653300
Availability: InStock

ICP DAS

Ціна за запитом

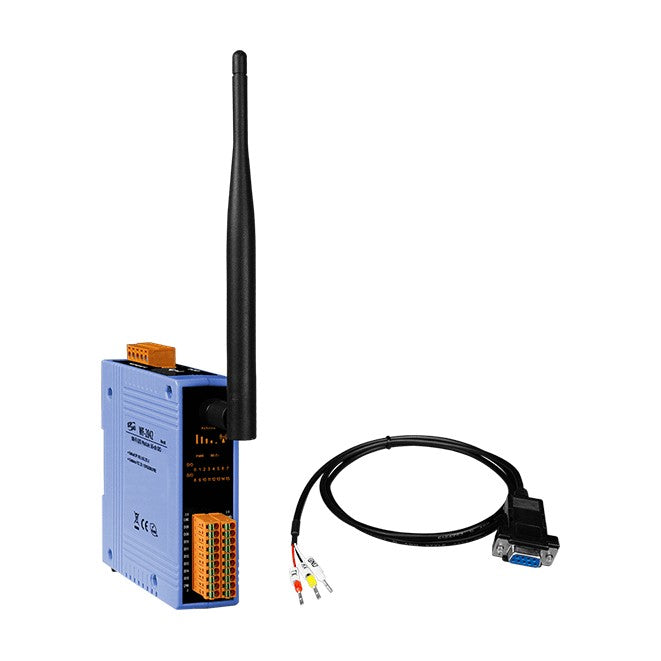

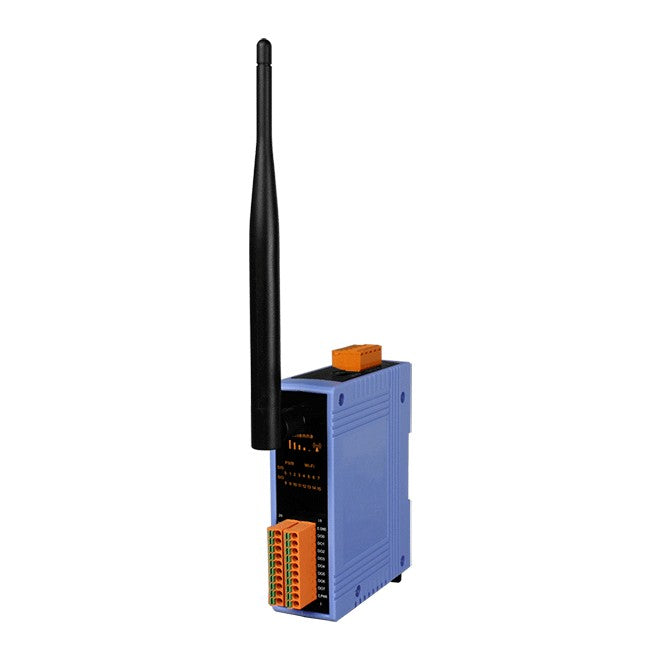

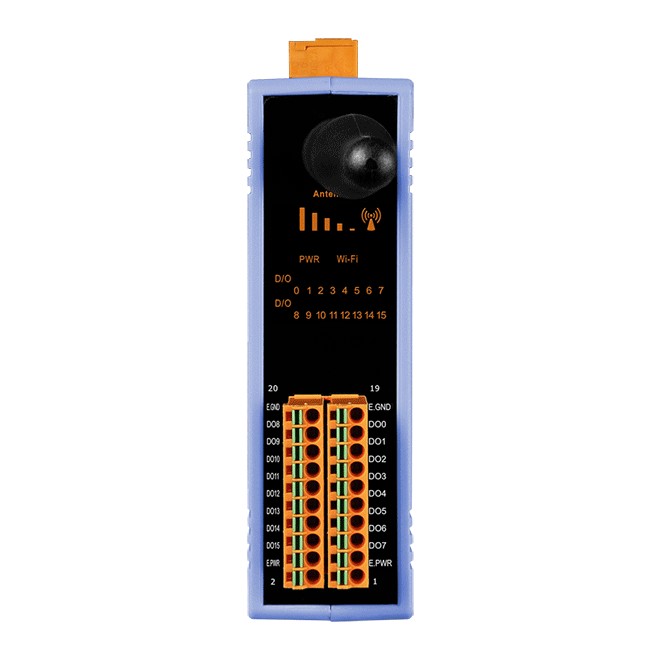

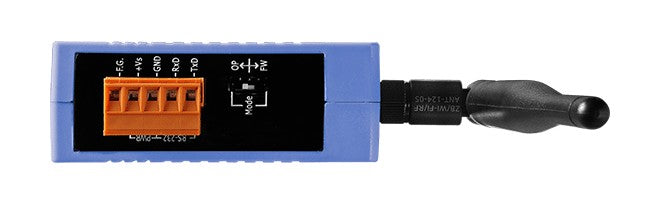

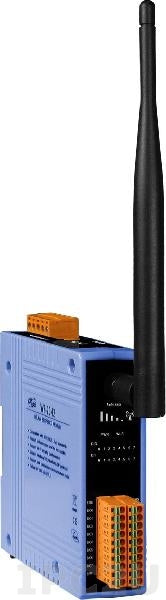

Wi-Fi I/O Module with 16-channel Isolated Digital Output, 5 dBi, IEEE 802.11b/g

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Wi-Fi
Wi-Fi Standard	802.11b/g
Quantity of Wi-Fi	1
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output	16
Type	Open collector
Sink/Source	Sink
Output voltage	3.5~50 V
Max. load current	700 mA
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	33 mm
Depth	106 mm
Height	120 mm
Operating Conditions
Operating Temperature	-25...75 °C
