WGS-E304PT

Name: WGS-E304PT
Brand: Planet
SKU: 57793500
Availability: InStock

Planet

Ціна за запитом

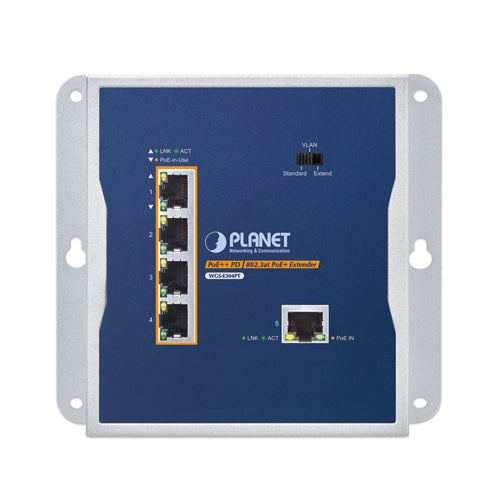

Industrial Wall-mounted Extender IP30 PoE In 1-Port 10/100/1000BASE-T, PoE Out 4-Port 10/100/1000BASE-T, Operating Temperature -40..75 C

Специфікація

Specification

Ethernet
Total Ethernet	5
ethernet_poe_1000mbit	4
ethernet_poe_standard	802_3at
Switch Properties
MAC Table Size	2000
Jumbo Frame Size	9000 kB
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3bt for Power over Ethernet
Construction

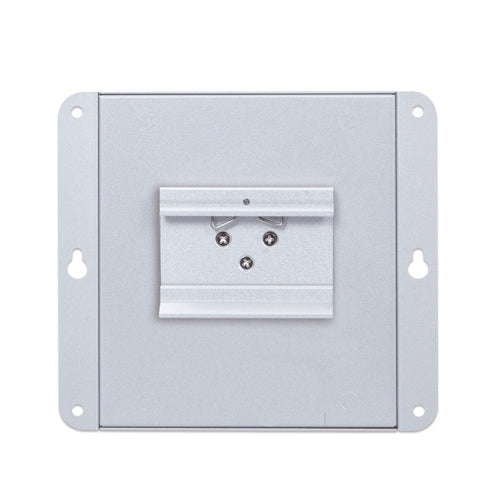

Mounting Configuration	Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	148 mm
Depth	134 mm
Height	24.2 mm
Operating Conditions
Operating Temperature	-40...75 °C
Humidity	5-95%
Standards and Certifications
Certifications	CE
EMI	FCC Part 15 Subpart A Class B
Freefall	IEC 60068-2-32
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27

Документація
