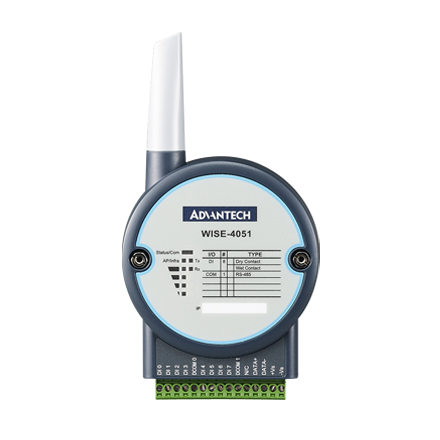

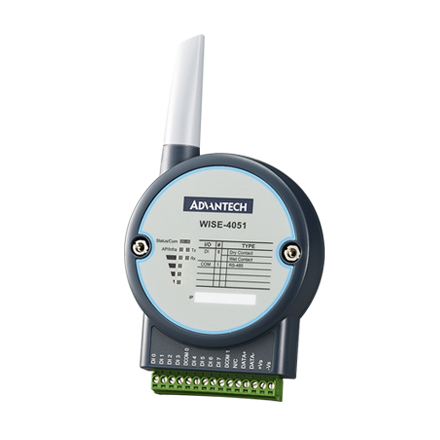

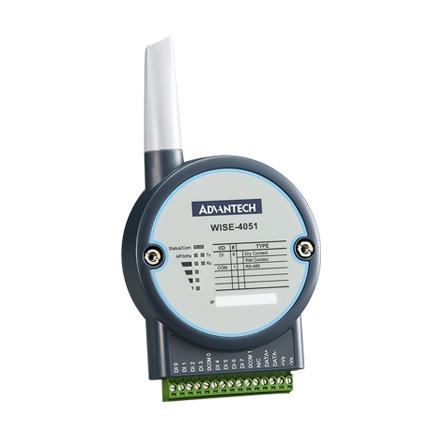

WISE-4051-AE

Name: WISE-4051-AE
Brand: Advantech
SKU: 07792600
Availability: InStock

Advantech

Ціна за запитом

8-ch Digital Input IoT Wireless I/O Module with RS-485 Port, 2.4 GHz IEEE 802.11b/g/n, max 44mW (16.45 dBm)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Digital Input
Total channels of digital input	8
Type	Dry contact
Isolation of Digital Input	3000 V
Max frequency	3 kHz
Counter	3KHz
Interfaces
RS-485	1
Wi-Fi
Wi-Fi Standard	802.11b/g/n
Expansion Module
io_type	di
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus RTU master, Modbus UDP slave, MQTT client
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	80 mm
Depth	25 mm
Height	148 mm
Operating Conditions
Operating Temperature	-25...70 °C
