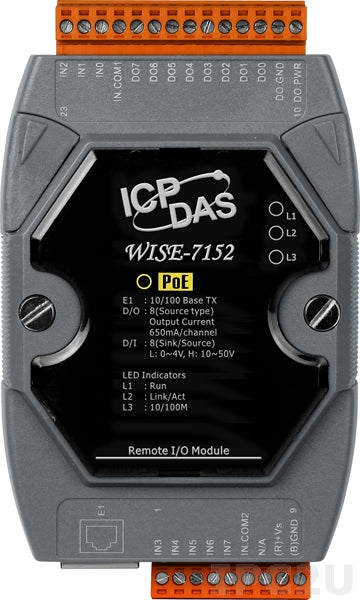

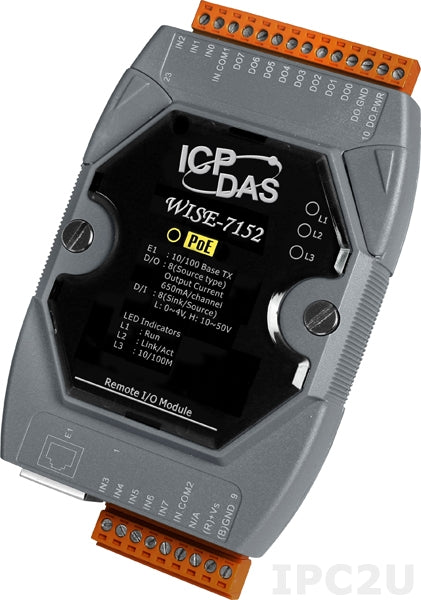

WISE-7152

Ціна за запитом
8-channel Isolated Sink Type Open Collector Output and 18-channel Isolated Digital Input WISE PoE Controller (RoHS)

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall, DIN-Rail mount

CPU

Processor Installed16-bit

Memory

Default on Board Memory0 GB

Installed drive

Flash Memory Capacity512 MB
EEPROM Memory Capacity16 kB

Software

Programming MethodIF-THEN-ELSE Logic Rules

Digital Input

Total channels of digital input8
TypeWet contact
Sink/SourceSink, Source
Level of Logic "0"0~4 V
Level of Logic "1"10~50 V
Counter50Hz, 16 bit

Digital Output

Total channels of digital output8
TypeOpen collector
Sink/SourceSource
Max. load current650 mA
Output voltage10~40 V

Supported Protocols

Industrial ProtocolsModbus TCP server

Additional Functions

Watchdog timer typeHardware

Connectors

ConnectorsScrew Terminal

Dimensions and weight

Width72 mm
Depth35 mm
Height123 mm

System Power Input

Input Voltage DC12...48 V

Operating Conditions

Operating Temperature-25...75 °C
