Construction | |
| Mounting Configuration | Panel |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Core i5-6200U |
| Max CPU frequency | 2.8 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Installed drive | |
| Drive Type | HDD |
| Storage Form-Factor | 2.5" |
| Drive Interface | SATA |
| 1st Storage Capacity | 500 GB |
Connectors | |

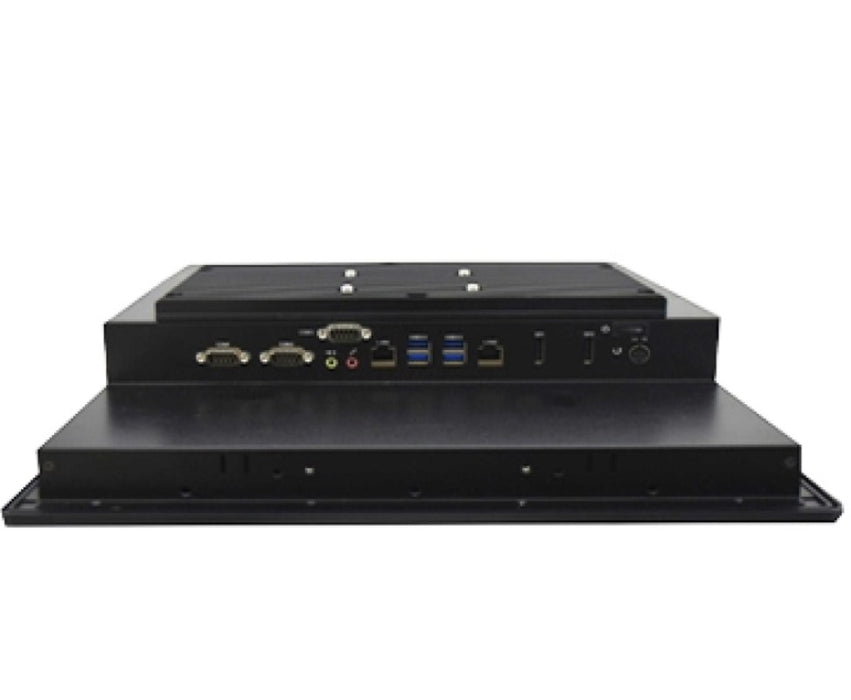

| Connectors | 2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort |
System Power Input | |
| Input Voltage DC | 9...32 V |
Standards and Certifications | |
| Certifications | CE, FCC |
