Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Coffee Lake Refresh |
| Processor Installed | Intel Core i5-9500TE |
| Socket | LGA1151 |
| Max CPU frequency | 3.6 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | 2.5" |
| Drive Interface | SATA |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 3 |
| PCI Express x16 | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| Controls | On/Off |
Connectors | |

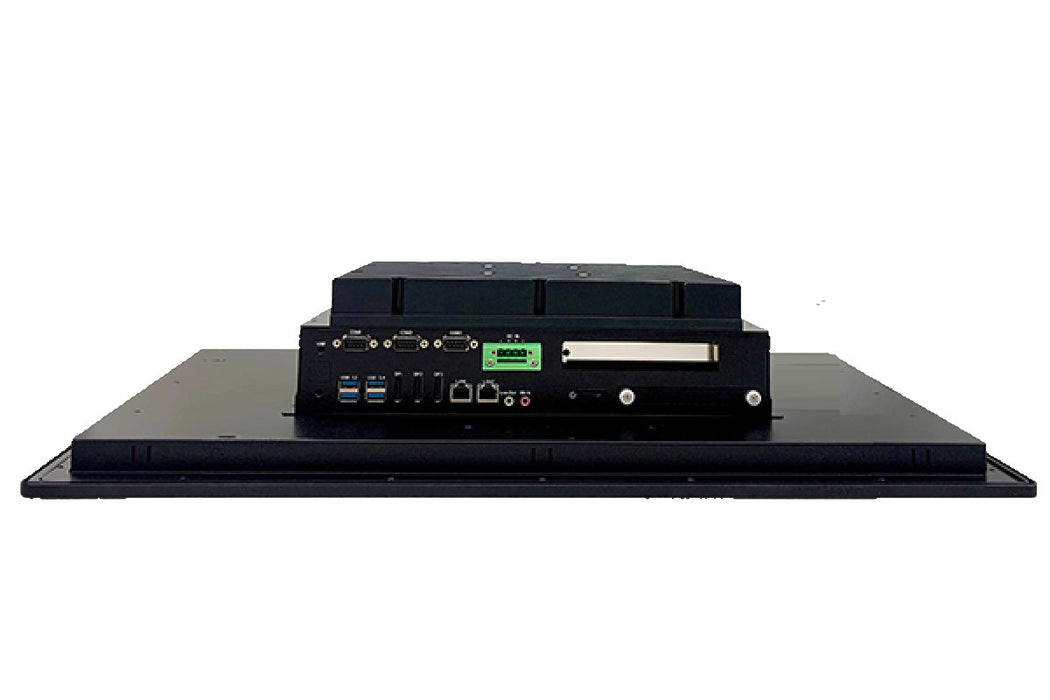

| Connectors | 3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 19...28 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 150 W |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 584.2 mm |
| Height | 364.6 mm |
| Depth | 121.4 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
