Construction | |
| Construction Chassis | Plastic Chassis |

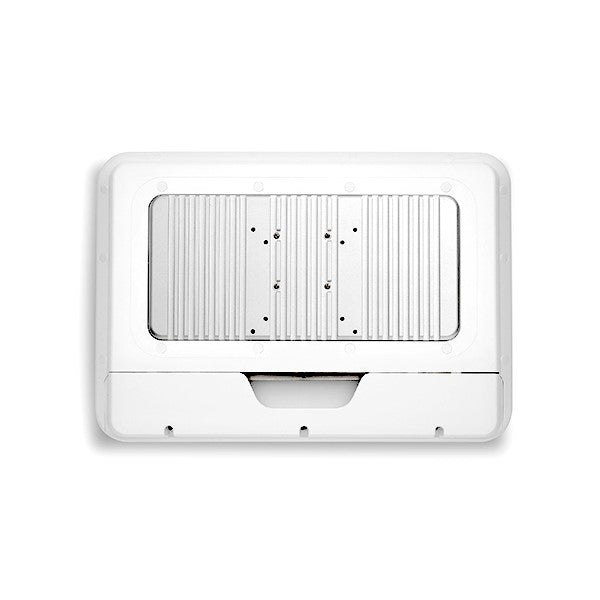

| Mounting Configuration | Desktop, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX1 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i5-6200U |
| Max CPU frequency | 2.8 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 2 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Marvell 88E8071 10/100/1000 Mbps |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 3 |
| USB v3.x | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Installed drive | |
| Drive Type | HDD |
| Storage Form-Factor | 2.5" |
| Drive Interface | SATA |
| 1st Storage Capacity | 320 GB |
Extension Slots | |
| Total | 2 |
| PCI Express x1 | 1 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, 1xKeyLock, 1xReset, Control Buttons |

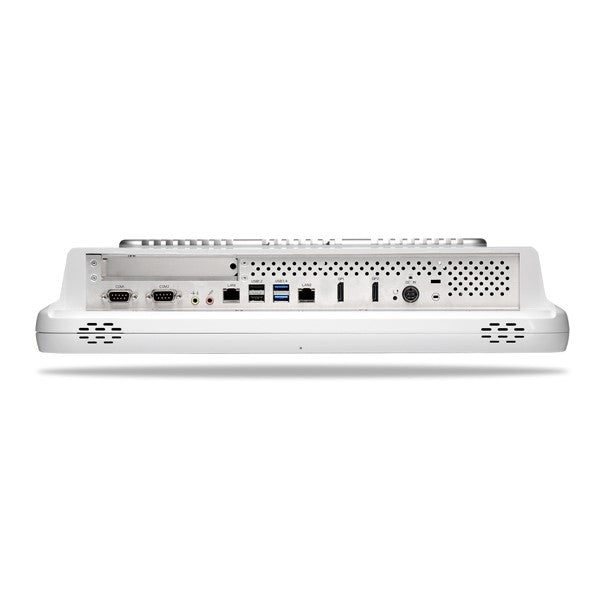

Connectors | |
| Connectors | 2xDB9, DVI-I, RJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 7...32 V |
Power Supply | |
| Type of Power Supply | Medical, External power adapter AC/DC |
| Output Power | 70.6 W |
| Supported Types of Power Supply | Li-battery Pack |
Dimensions and weight | |
| Width | 430 mm |
| Height | 300 mm |
| Depth | 83 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | FCC, VCCI |
| Medicine | UL 60601-1, EN 60601-1 |
| Safety | UL/cUL |
