Construction | |
| Construction Chassis | Plastic Chassis |

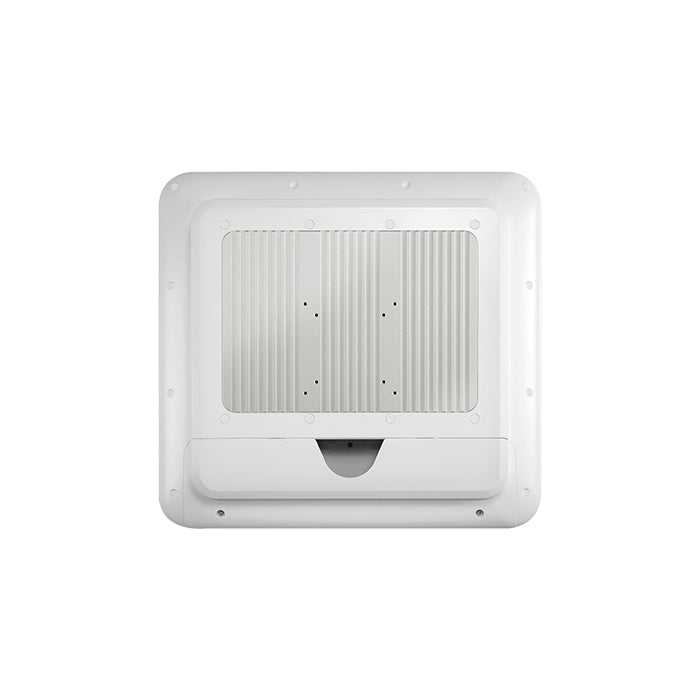

| Mounting Configuration | Wall VESA 75, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX1 |
| Type | Fanless |

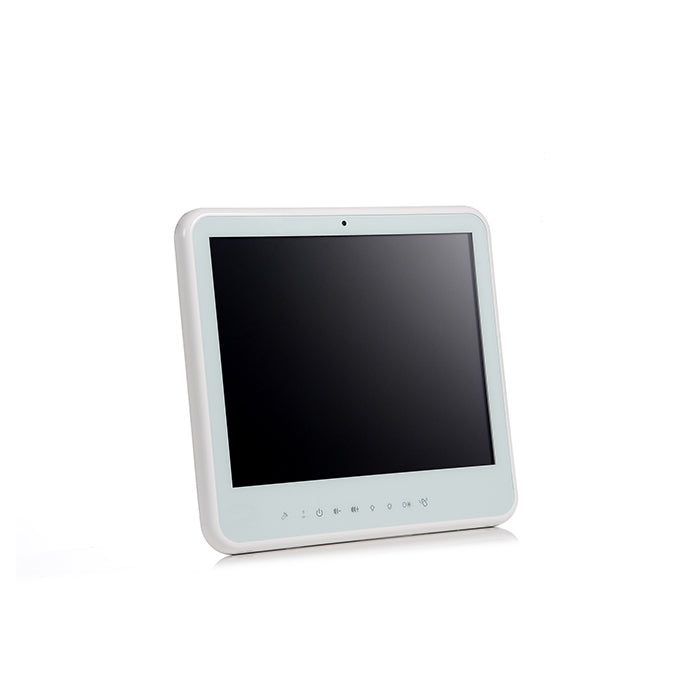

Display | |
| Display Type | LCD TFT |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 5:4 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | DisplayPort, HDMI |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Raptor Lake |
| Processor Installed | Intel Core i5-1335U |
| Max CPU frequency | 4.6 GHz |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Default on Board Memory | 8 GB |
| Maximum Memory | 96 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel Iris Xe Graphics |
Ethernet | |
| Total Ethernet | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 2 |
| PCI Express x4 | 1 |
| M.2 | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |

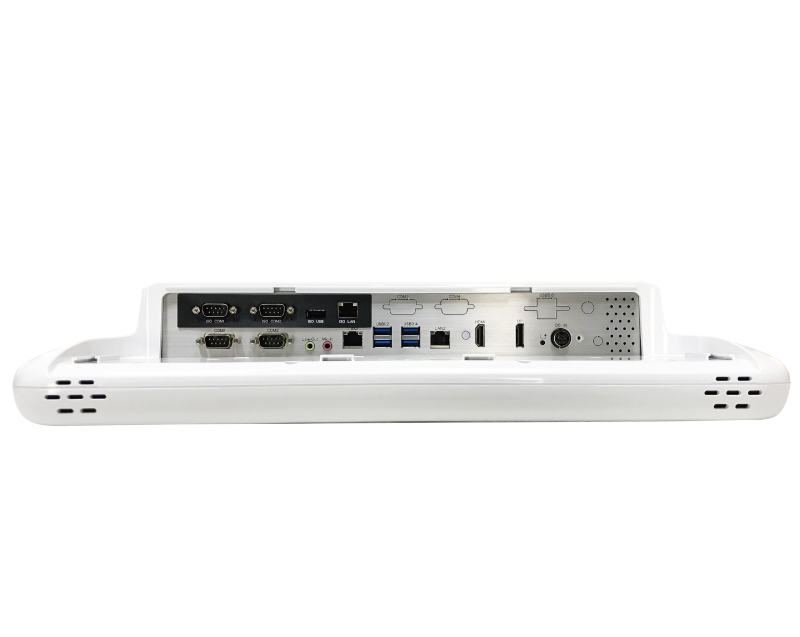

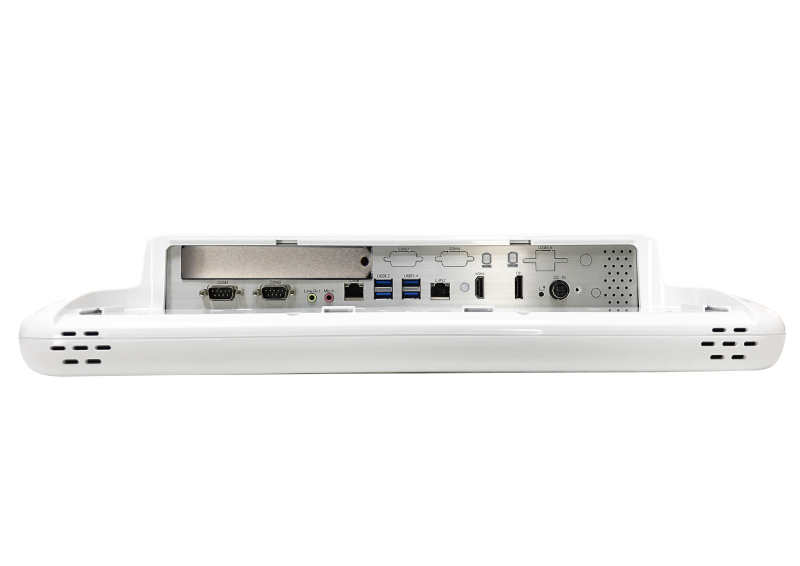

Connectors | |
| Connectors | 4xUSB, 2xDB9, 2xRJ45, Display Port, HDMI, Mic In, Line Out |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 450 mm |
| Height | 420 mm |
| Depth | 85.3 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Humidity | 10-90% |
Standards and Certifications | |
| Certifications | CE, FCC Class B, VCCI |
| Medicine | EN 60601-1 |
| Safety | UL, cUL |
