Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX1 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 3000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i5-7200U |
| CPU Support Type | Core i3, Core i5, Core i7 |
| Max CPU frequency | 3.1 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD Graphics 620 |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 3 |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, 1xReset, Control Buttons |
Connectors | |
| Connectors | Mic In, Line Out, DC Input, 2xDisplayPort |
System Power Input | |
| Input Voltage DC | 18...18 V |
Power Supply | |
| Type of Power Supply | Medical, External power adapter AC/DC |

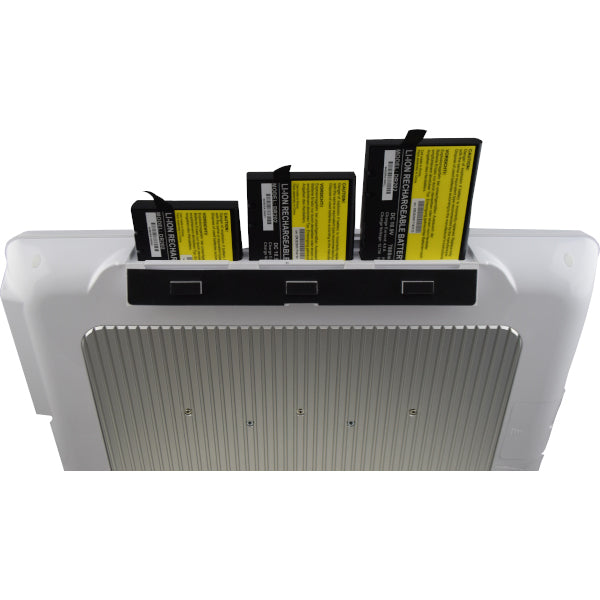

| Supported Types of Power Supply | Li-battery Pack |
Software | |
| Operating System Installed | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 541 mm |
| Height | 352.9 mm |
| Depth | 56 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | FCC, VCCI |
| Medicine | UL 60601-1, EN 60601-1, UL 60601-1-1-2 |
| Safety | UL/cUL |
