Construction | |
| Construction Chassis | Plastic Chassis |

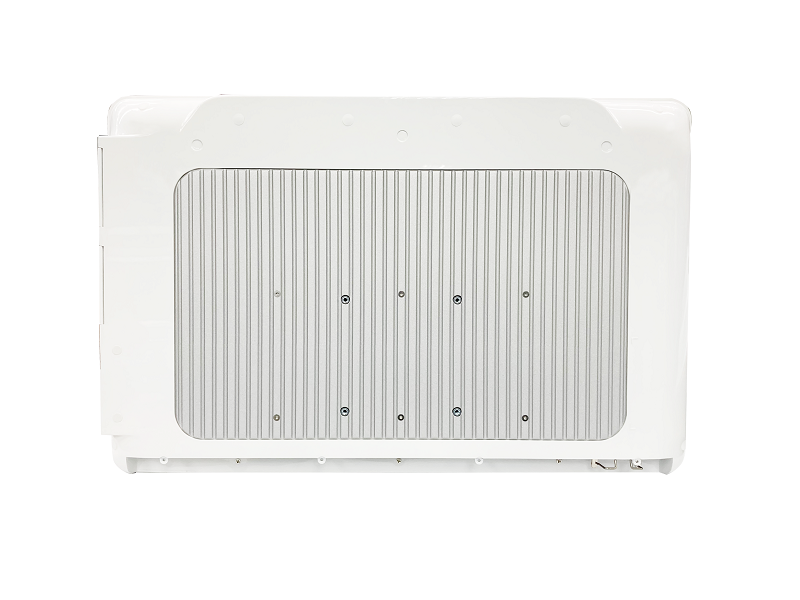

| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP54 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | HDMI, DisplayPort |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Raptor Lake |
| Processor Installed | Intel Core i5-1235U |
| Max CPU frequency | 4.4 GHz |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Default on Board Memory | 8 GB |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel Iris Xe Graphics |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 1 |
| 2,5 Gbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| Drive Interface | PCIe x4 |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 2 |
| PCI Express x4 | 1 |
| M.2 | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

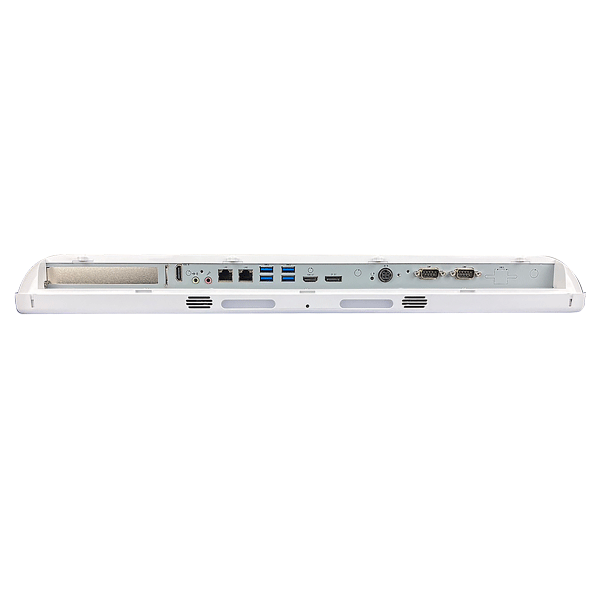

| Connectors | Mic In, Line Out, 4xUSB, 2xDB9, 2xRJ45, Display Port, 2xHDMI |
System Power Input | |
| Input Voltage DC | 14...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 541 mm |
| Height | 352.9 mm |
| Depth | 56 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Humidity | 10-90% |
Standards and Certifications | |
| Certifications | CE, FCC Class B, VCCI |
| Medicine | EN 60601-1 |
| Safety | UL, cUL |
