WTD-15

Name: WTD-15
Brand: Wincomm
SKU: 08355300
Availability: InStock

Wincomm

Ціна за запитом

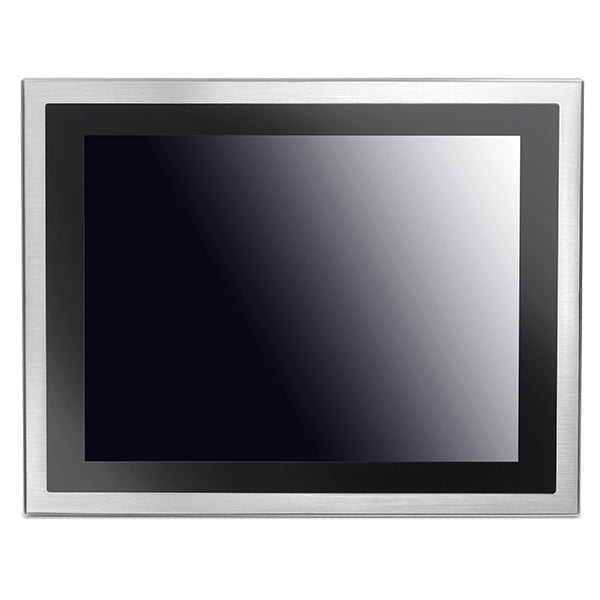

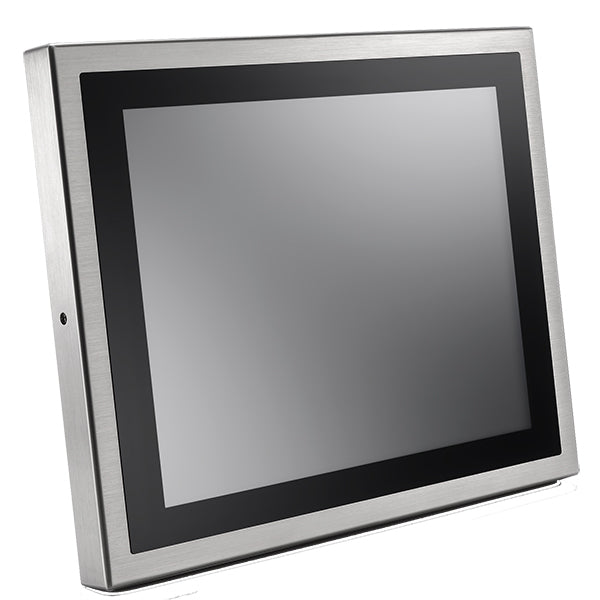

Full IP Stainless Monitor 15", 1024x768 450 nits, Resistive touch screen (USB M12), VGA, HDMI, 12VDC-in (M12), IP69K/IP67

Специфікація

Specification

Construction
Mounting Configuration	Wall VESA 100
Protection Level of Front Side (Panel)	IP67, IP69K
Protection Level of Chassis	IP67, IP69K
Display
Display Type	LCD TFT
Diagonal	15 "
Maximum resolution	1024x768 Dots
Brightness	450 Cd/m2
Contrast Ratio	600~1
Touch Screen
Touch Screen Type	Resistive
LED / Controls
Controls	Control Buttons
Connectors

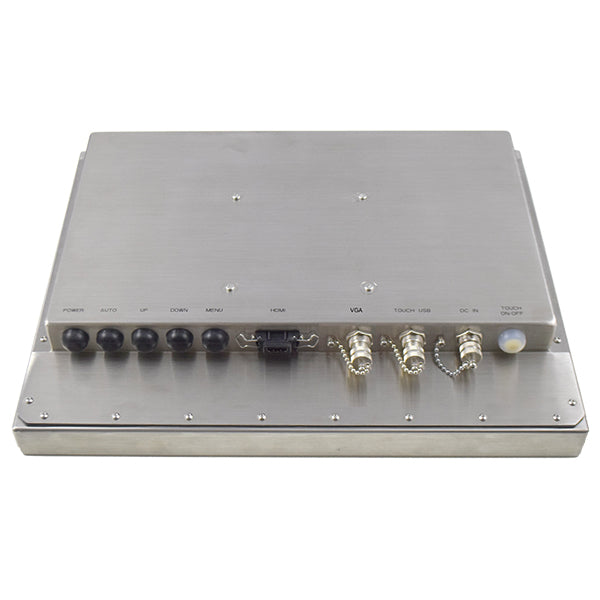

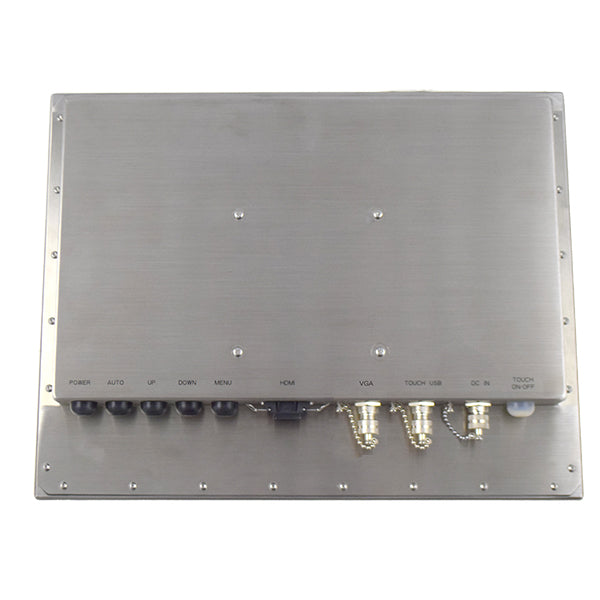

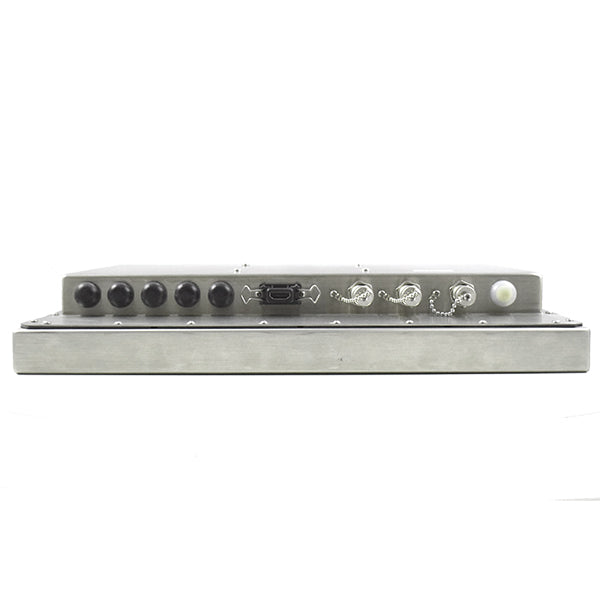

Connectors	DB15 VGA, HDMI, 1xUSB, DC Input
System Power Input
Input Voltage DC	12...12 V
Operating Conditions
Operating Temperature	-10...55 °C
Dimensions and weight
Width	395 mm
Height	309.5 mm
Depth	64 mm
Standards and Certifications
Certifications	CE, FCC, VCCI
