Construction | |
| Construction Chassis | Stainless Steel |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP69K |
| Protection Level of Chassis | IP66, NEMA 4X |
| Type | Fanless |
Display | |

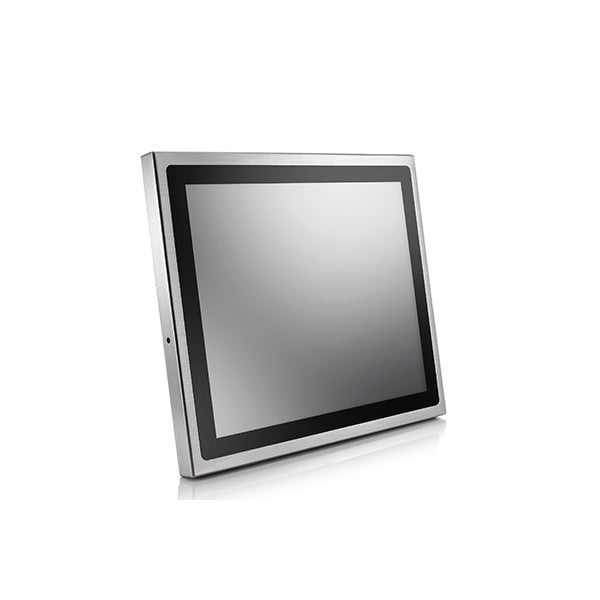

| Display Type | LCD TFT |
| Diagonal | 19 " |
| Aspect Ratio | 5:4 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Intel Celeron J6412 |
| Socket | CPU onboard |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel UHD Graphics |
Ethernet | |
| Total Ethernet | 1 |
| 2,5 Gbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB 2.0 | 2 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 3 |
Connectors | |

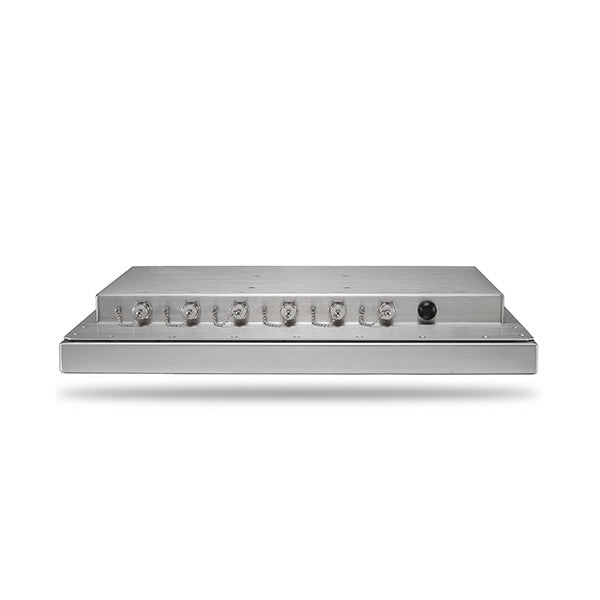

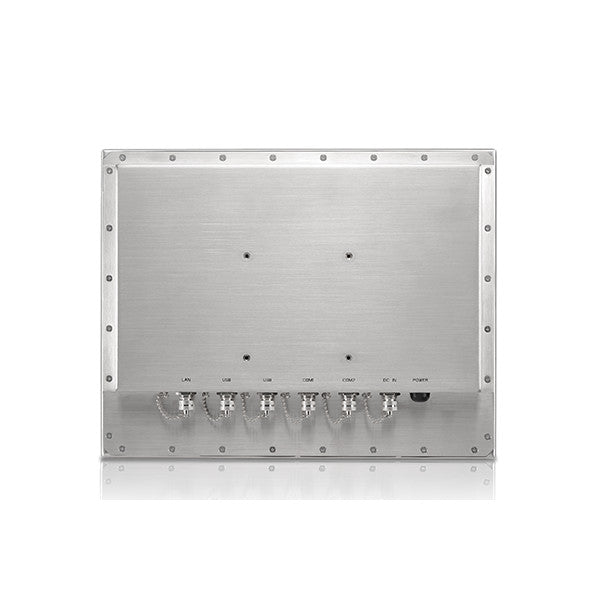

| Connectors | DB15 VGA, HDMI, M12 DC-in, 2x8-pin M12 USB, 2x8-pin M12 COM, M12 LAN |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 458 mm |
| Height | 386 mm |
| Depth | 64 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B, VCCI |
