Construction | |
| Construction Chassis | Stainless Steel |
| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |
| Protection Level of Chassis | IP66 |
| Type | Fanless |

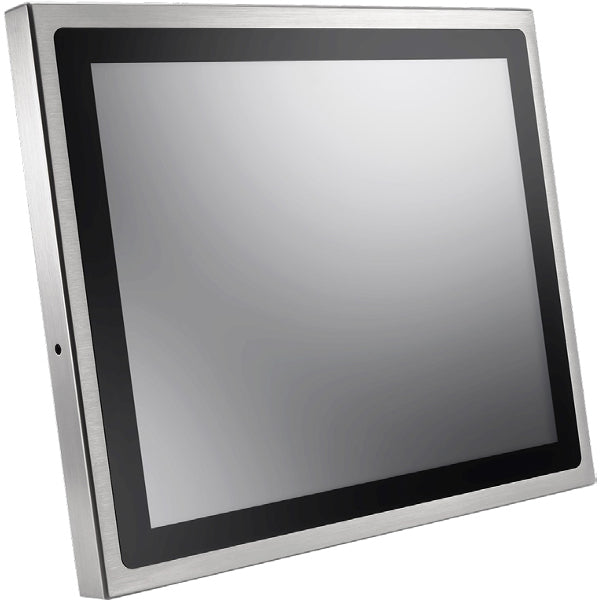

Display | |
| Display Type | LCD TFT |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 600~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| CPU Support Type | Core i3, Core i5, Core i7 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Intel HD Graphics 520 |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| USB Total | 2 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |

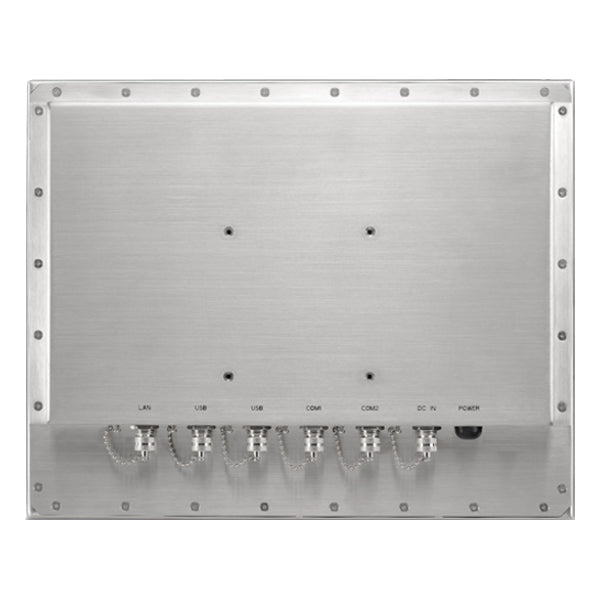

Connectors | |
| Connectors | 6xM12 |
System Power Input | |
| Input Voltage DC | 7...32 V |
Dimensions and weight | |
| Width | 458 mm |
| Height | 386 mm |
| Depth | 64 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
