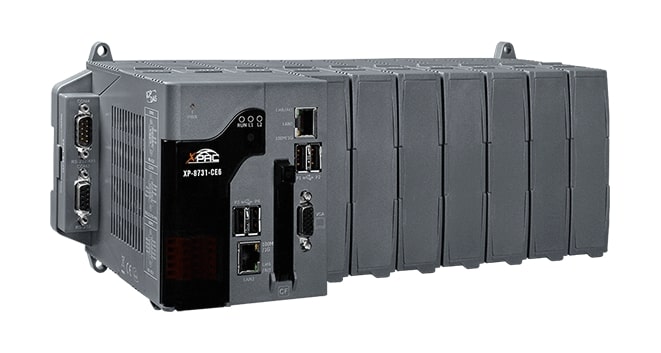

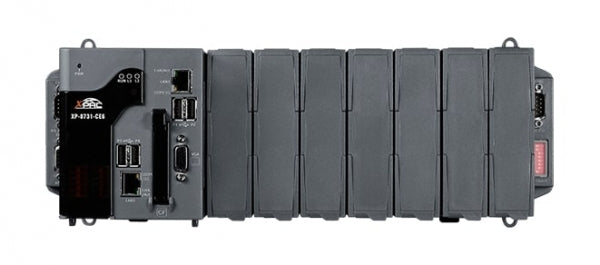

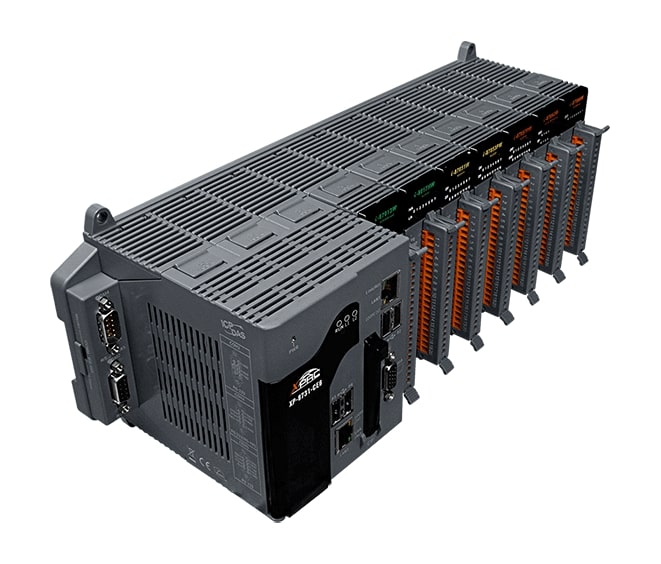

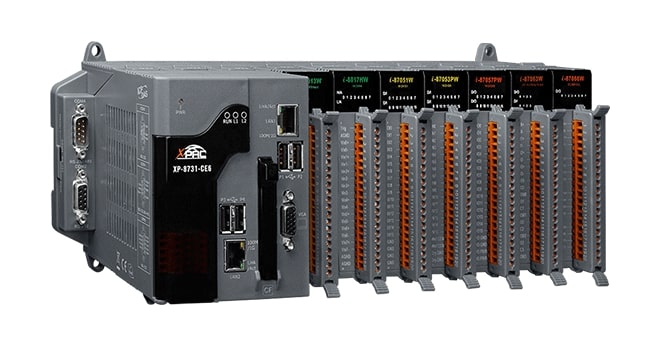

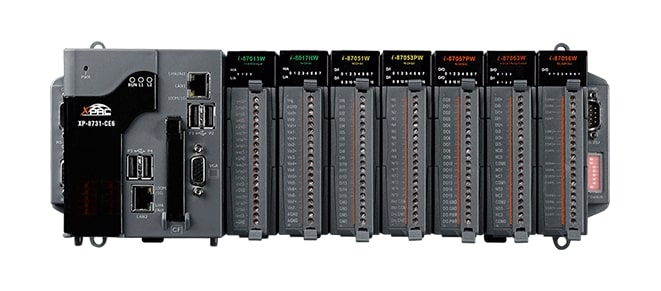

XP-8731-CE6

Ціна за запитом
PC-compatible Industrial Controller, x86 1GHz CPU, 2GB DDR3, 32GB Flash, 2xRS-232, 1xRS-485, 1xRS-232/485, VGA, 2xEthernet, Windows CE6, with 7 Expansion Slots

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall, DIN-Rail mount

CPU

Processor InstalledRDC R3600
Max CPU frequency1 GHz

Memory

Default on Board Memory2 GB

Installed drive

Flash Memory Capacity32 MB
EEPROM Memory Capacity16 kB
MRAM Memory Capacity512 kB
1st Storage Capacity8 GB

Drive interfaces

CFast Slots1

Expansion Module

Quantity of Slots7
Supported ModuleI-8K series, I-87K series

Software

Operating System InstalledWindows CE 6.0
Programming MethodC/C++
Development SoftwareVC, VB, Delphi, BCB, Visual Studio .NET

Ethernet

10/100/1000 Mbit/s2

Interfaces

COM Total4
RS-2322
RS-4851
RS-232/4851
USB Total4

Additional Functions

Watchdog timer typeHardware, Software

Graphic

InterfacesVGA

Dimensions and weight

Width355 mm
Depth125 mm
Height132 mm

System Power Input

Input Voltage DC10...30 V

Operating Conditions

Operating Temperature-25...75 °C
