Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 10.1 " |
| Maximum resolution | 1280x800 Dots |
| Aspect Ratio | 16:10 |
| Brightness | 360 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i5-1145G7E |
| Max CPU frequency | 4.1 GHz |
Memory | |
| Socket Type | 1xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| M.2 | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

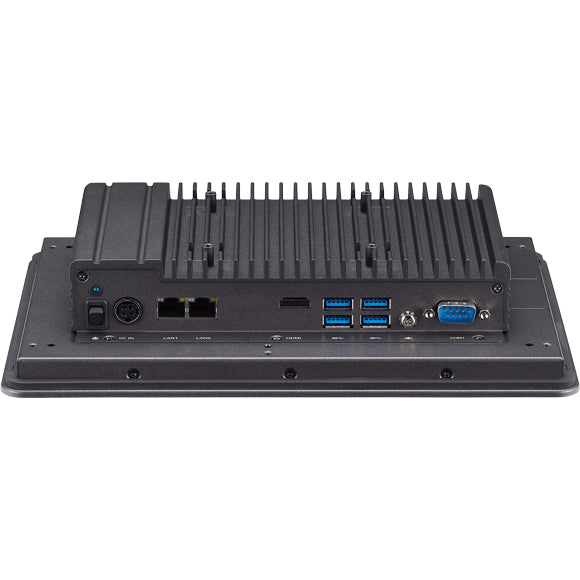

| Connectors | DB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 260.3 mm |
| Height | 178.3 mm |
| Depth | 50.4 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 2Grms @ sine. 5~500Hz. 1hr/axis; 2.2Grms @ random condition. 5~500Hz. 0.5hr/axis (non-operating) |
| Shock | 50g peak acceleration (11 msec. duration) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
