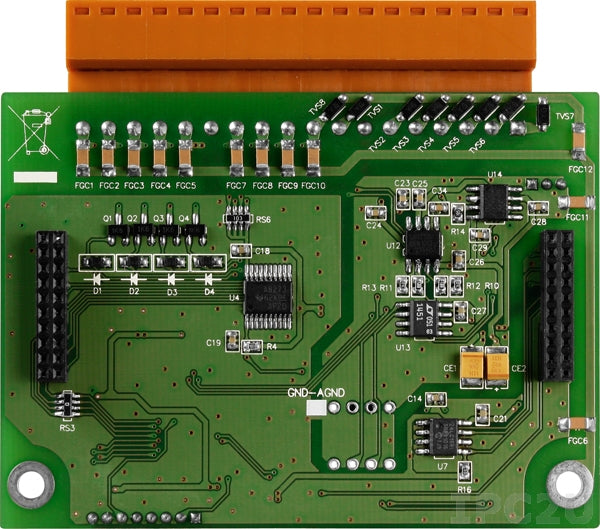

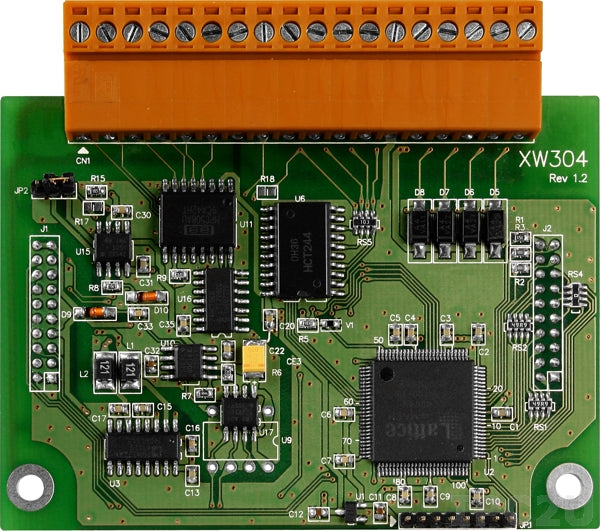

XW304

Name: XW304
Brand: ICP DAS
SKU: 66241600
Availability: InStock

ICP DAS

Ціна за запитом

6-channel A/D (+/- 5 V or 0 ... 5 V), 1-channel D/A (+/- 5 V), 4-channel D/O, 4-channel D/I (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Open Frame
Mounting Configuration	Built-in
Analog Input
Total channels of analog input	6
Number of Bits	12 Bit
Voltage range	+/-5 V, 0...5 V
Sampling rate	4 Hz
Single-Ended channels	8
Analog Output
Channels of analog input	1
DAC Bit Rate	12 Bit
Voltage range	+/-5 V
Digital Input
Total channels of digital input	4
Type	Dry contact
Digital Output
Total channels of digital output	4
Type	Open collector
Sink/Source	Sink
Output voltage	10~40 V
Max. load current	200 mA
Dimensions and weight
Width	66 mm
Depth	17 mm
Height	82 mm
