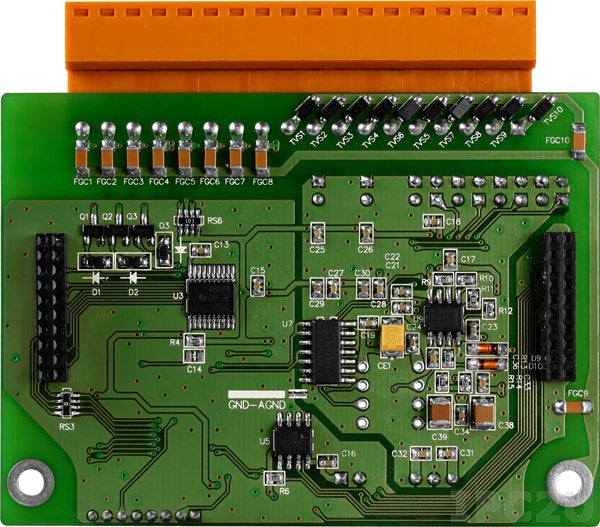

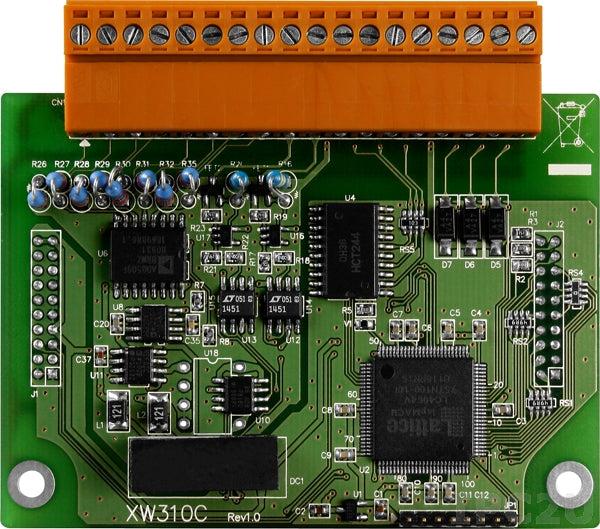

XW310C

Name: XW310C
Brand: ICP DAS
SKU: 66258400
Availability: InStock

ICP DAS

Ціна за запитом

4-channel Differential/8-channel Single-Ended A/D (0...20 mA), 2-channel D/A (0...20 mA), 3-channel D/O, 3-channel D/I (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Open Frame
Mounting Configuration	Built-in
Analog Input
Total channels of analog input	8
Number of Bits	12 Bit
Current range	0...20 mA
Sampling rate	4 Hz
Single-Ended channels	8
Differential channels	4
Analog Output
Channels of analog input	2
DAC Bit Rate	12 Bit
Current range	0...20 mA
Digital Input
Total channels of digital input	3
Type	Dry contact
Digital Output
Total channels of digital output	3
Type	Open collector
Sink/Source	Sink
Output voltage	10~40 V
Max. load current	200 mA
Dimensions and weight
Width	66 mm
Depth	17 mm
Height	82 mm
