Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |
RF Interface | |
| Radio Standard | ZigBee (Slave, Router) |
Supported Protocols | |
| Industrial Protocols | Modbus RTU slave, DCON slave |
Analog Input | |
| Total channels of analog input | 6 |
| Number of Bits | 16 Bit |
| Sampling rate | 12 Hz |
| Thermal resistance | Pt100, Pt1000, Ni120, Cu100, Cu1000 |
Connectors | |

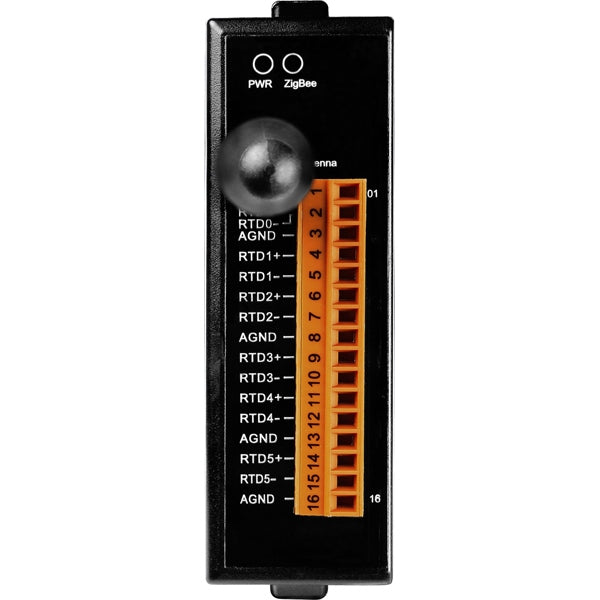

| Connectors | Screw Terminal |
Additional Functions | |
| Watchdog timer type | Hardware, Software |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 87 mm |
| Height | 110 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
