ZT-2053-IOG

Name: ZT-2053-IOG
Brand: ICP DAS
SKU: 56417100
Availability: InStock

ICP DAS

Ціна за запитом

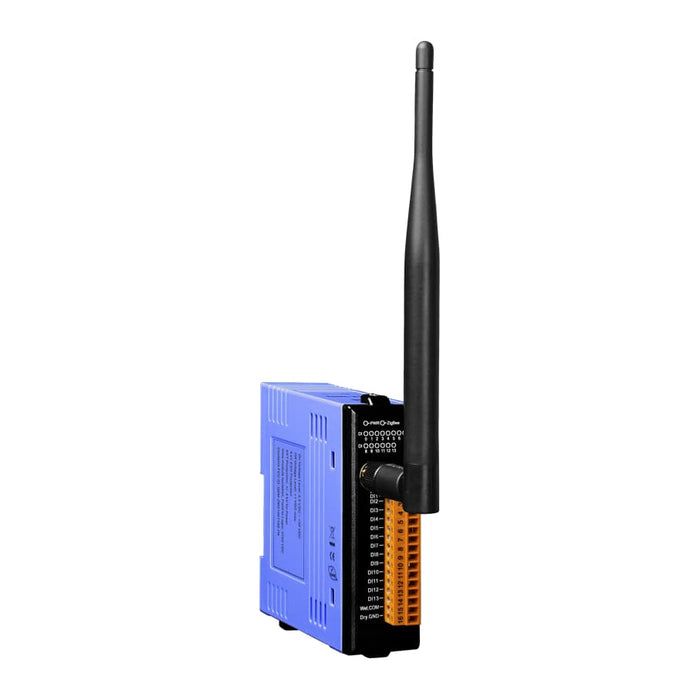

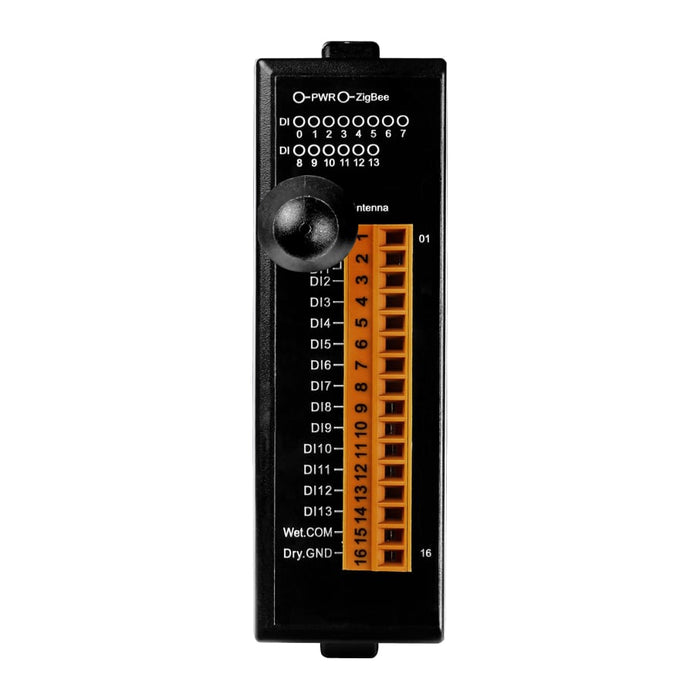

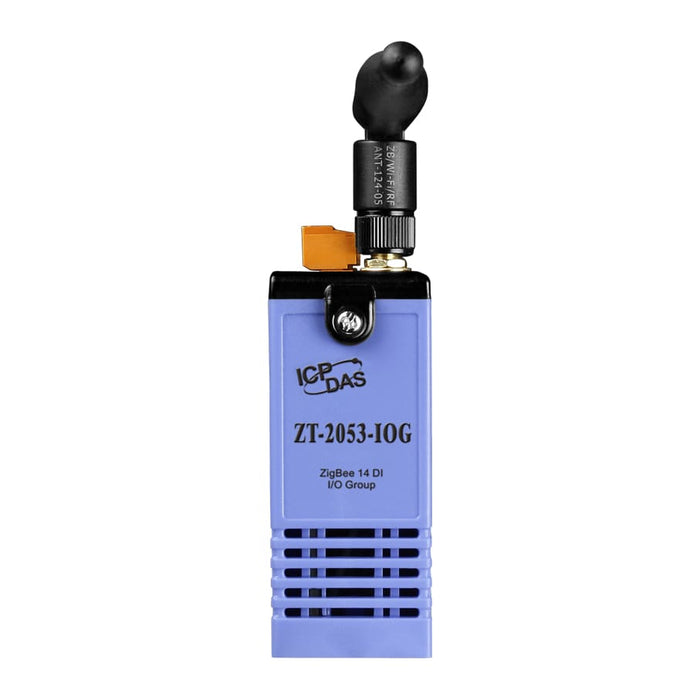

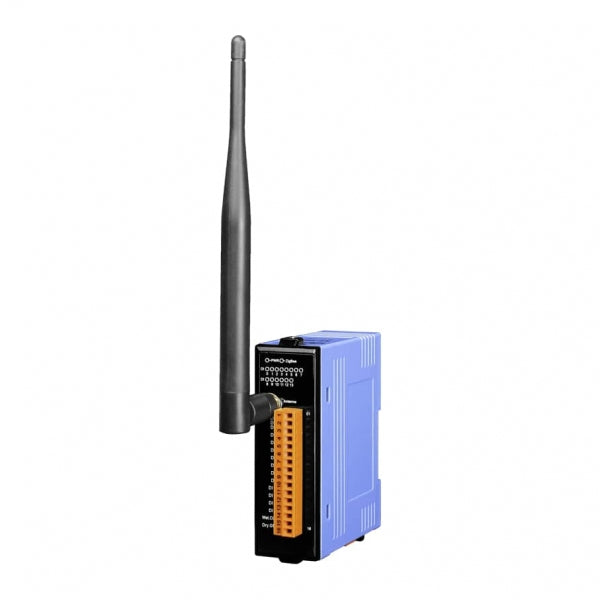

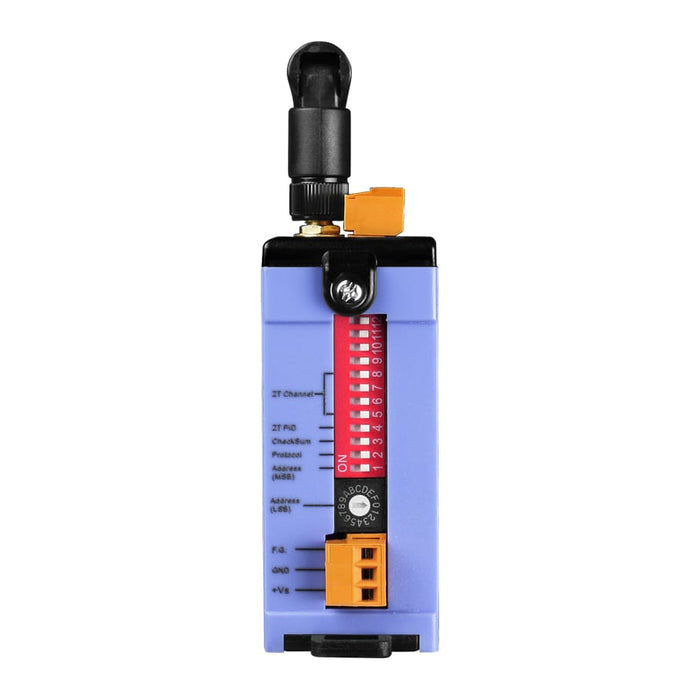

ZigBee I/O Group (Pair-connection) Module with the 14-channel Isolated Digital Input (ZigBee Coordinator & ZigBee Router)(RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
RF Interface
Radio Standard	ZigBee (Slave, Router)
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input	14
Type	Dry contact, Wet contact
Level of Logic "0"	0~1 V
Level of Logic "1"	3.5~30 V
Sink/Source	Sink, Wet: Sink/Source
Connectors
Connectors	Screw Terminal
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	33 mm
Depth	87 mm
Height	110 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	CE, FCC
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
