System Architecture | |
| Form Factor | ATX |
CPU | |
| СPU Generation/Family | Alder Lake, Raptor Lake |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel Q670E |
Memory | |
| Socket Type | 4xDDR4 DIMM 288pin |
| ECC | No |
| Maximum Memory | 128 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, 2xHDMI, VGA |
Ethernet | |
| Controller Type | Intel i226-LM, Intel i226V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 10 |
| USB 2.0 | 4 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 10 |
| PCI Express x16 | 2 |
| PCI Express x4 | 3 |
| M.2 | 3 |
| PCI | 2 |
Connectors | |
| Internal Ports | 4xSATA 3, 5xCOM |

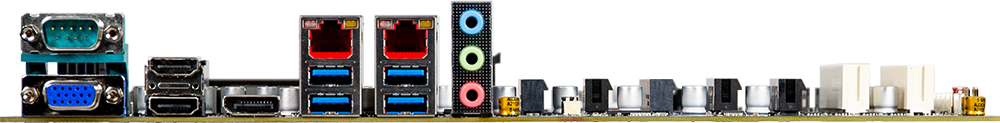

| Connectors | 24pin ATX, DB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, Display Port, 8-pin ATX |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 305 mm |
