iSN-101/S2/DIN

Name: iSN-101/S2/DIN
Brand: ICP DAS
SKU: 08595200
Availability: InStock

ICP DAS

Ціна за запитом

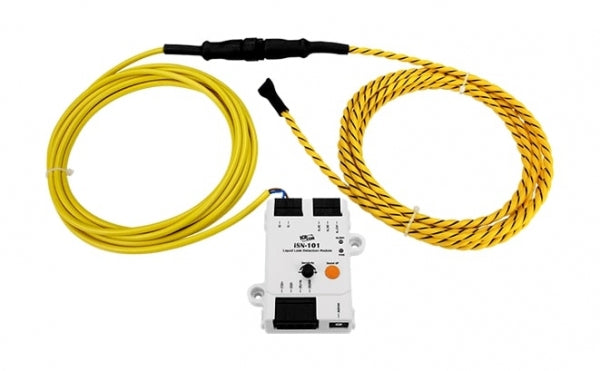

DIN-Rail 1-channel Liquid Leak Detection Module, DCON, Modbus RTU, configurable Output Relay 125VAC, 26KO to 580KO detection sensivity, -25C to +75C operating temperature, with 3m Liquid Leak Detection Cable and 3m Extended Cable

Специфікація

Specification

Digital Output
Total channels of digital output	1
Type	Electromagnitic relay
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Interfaces
RS-485	1
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Dimensions and weight
Width	70 mm
Depth	29 mm
Height	83 mm
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4
Cables
Included Cables	3m Liquid Leak Detection Cable and 3m Extended Cable

Документація

Files

Documentation

📄 Datasheet iSN-101

📄 Quick Start iSN-101

📄 User Manual iSN-101

📄 iSN-101_iSN-101DIN_datasheet_RUS.pdf

📄 iSN-101_быстрый старт_RUS.pdf
