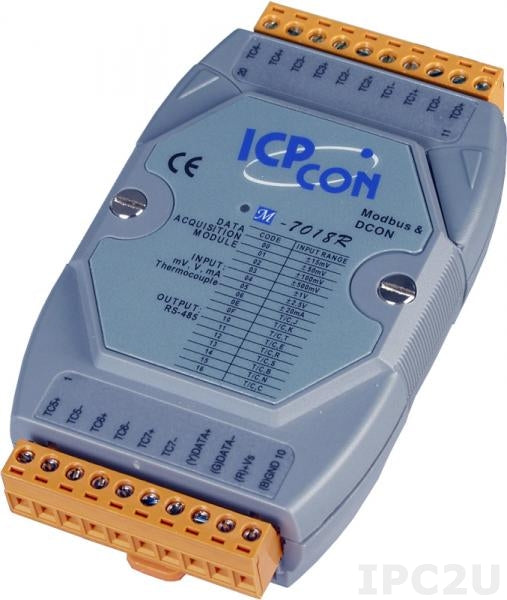

M-7018R

Ціна за запитом
8 Channels Thermocouple Input Module, Overvoltage Protection, Modbus RTU

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall, DIN-Rail mount

Interfaces

RS-4851

Supported Protocols

Industrial ProtocolsModbus RTU slave, DCON slave

Analog Input

Total channels of analog input8
Number of Bits16 Bit
Voltage range+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range-20...+20 mA
Sampling rate10 Hz
Differential channels8
ThermocoupleJ: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С

Connectors

ConnectorsScrew Terminal

Additional Functions

Watchdog timer typeHardware, Software

System Power Input

Input Voltage DC10...30 V

Dimensions and weight

Width72 mm
Depth35 mm
Height123 mm

Operating Conditions

Operating Temperature-25...75 °C

Standards and Certifications

EMSIEC 61000-4-2, IEC 61000-4-4
