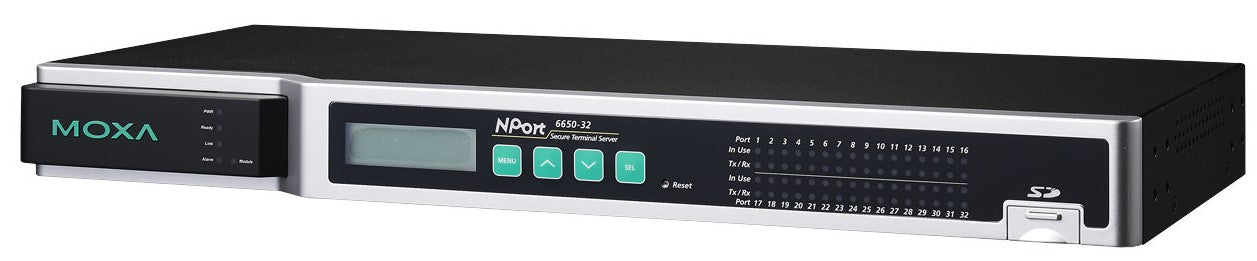

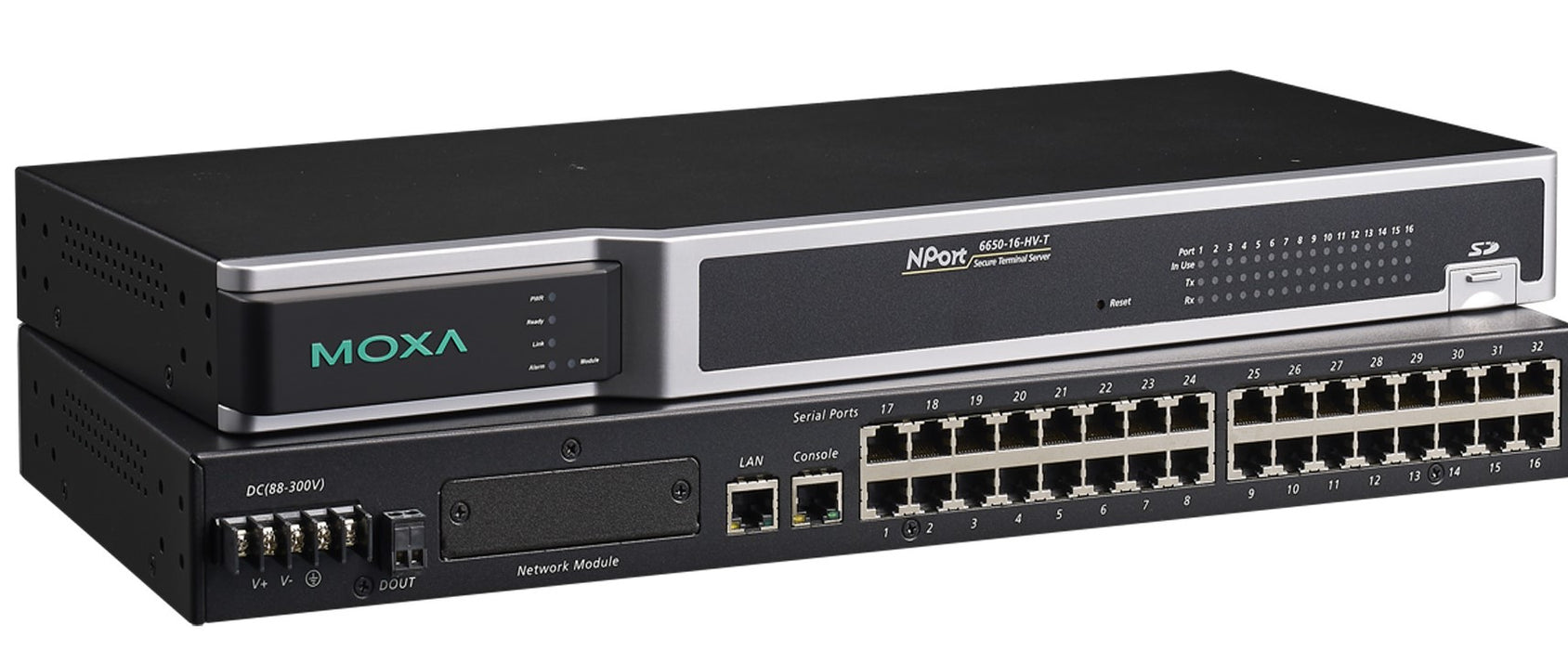

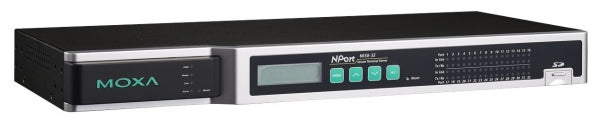

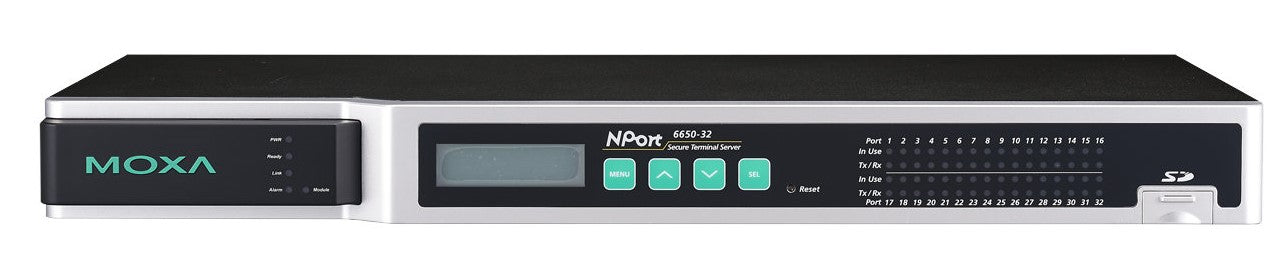

NPort 6650-32-48V

Ціна за запитом
32-Ports RS-232/422/485 Secure Serial Device Server, SD/MMC Socket, 48VDC Power Input

Ethernet

Total Ethernet 1
10/100 Mbit/s 1
Type 10/100 Mbit/s 1xRJ-45

Interfaces

COM Total 32
RS-232/422/485 32

Digital Output

Total channels of digital output 1
Type Signal Relay

Supported Protocols

Managment Protocols SMTP, SNMPv1/v2c/v3, BootP, HTTP, Telnet, TCP, UDP, DHCP, DNS, ARP
Security Protocols DES, 3DES, AES, SSH, SSL, ICMP

Expansion Module

Quantity of Slots 1
Supported Module NM series

LED / Controls

LED Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface

Connectors

Connectors SD card slot

System Power Input

Input Voltage DC Min 20 V
Input Voltage DC Max 72 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 55 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration 19" Rackmount

Dimensions and weight

Width 440 mm
Depth 195 mm
Height 44 mm

Standards and Certifications

Certifications CE, WEEE, FCC
Freefall IEC 60068-2-32
Safety UL 60950-1, EN 60950-1
Vibration And Shock IEC 60068-2-6
