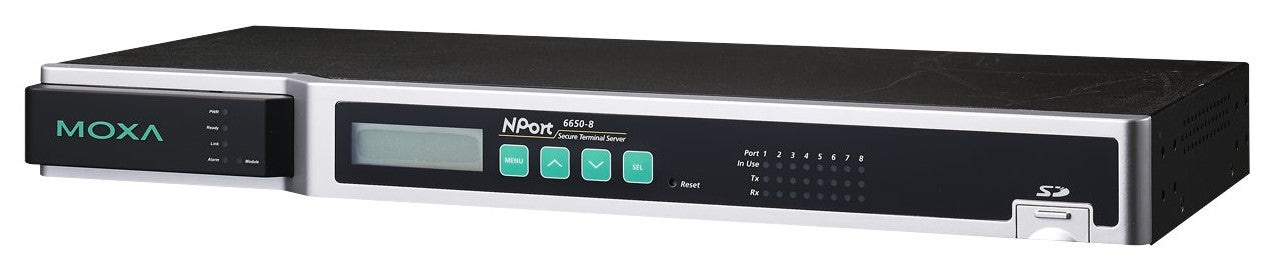

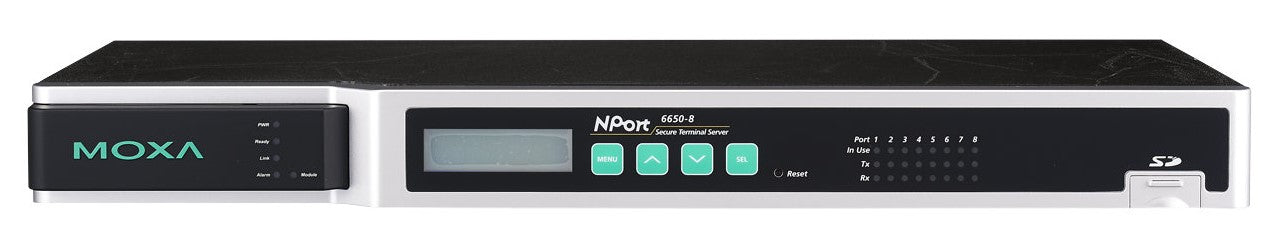

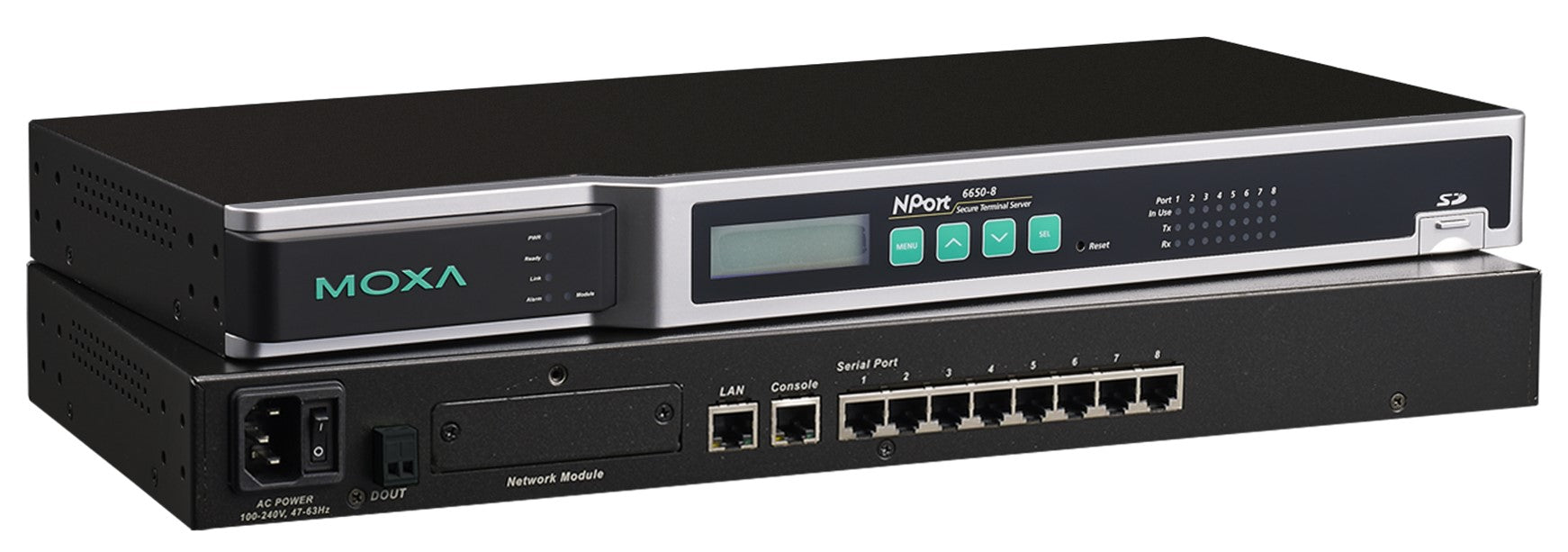

NPort 6650-8-48V

Ціна за запитом
8-Ports RS-232/422/485 Secure Serial Device Server, SD/MMC Socket, 48VDC Power Input


Total Ethernet 1
10/100 Mbit/s 1
Type 10/100 Mbit/s 1xRJ-45


COM Total 8
RS-232/422/485 8

Digital Output

Total channels of digital output 1
Type Signal Relay

Supported Protocols

Managment Protocols SMTP, SNMPv1/v2c/v3, BootP, HTTP, Telnet, TCP, UDP, DHCP, DNS, ARP
Security Protocols DES, 3DES, AES, SSH, SSL, ICMP

Expansion Module

Quantity of Slots 1
Supported Module NM series

LED / Controls

LED Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface


Connectors SD card slot

System Power Input

Input Voltage DC Min 20 V
Input Voltage DC Max 72 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 55 °C


Construction Chassis Metal Chassis
Mounting Configuration 19" Rackmount

Dimensions and weight

Width 440 mm
Depth 195 mm
Height 44 mm

Standards and Certifications

Certifications CE, WEEE, FCC
Freefall IEC 60068-2-32
Safety UL 60950-1, EN 60950-1
Vibration And Shock IEC 60068-2-6
