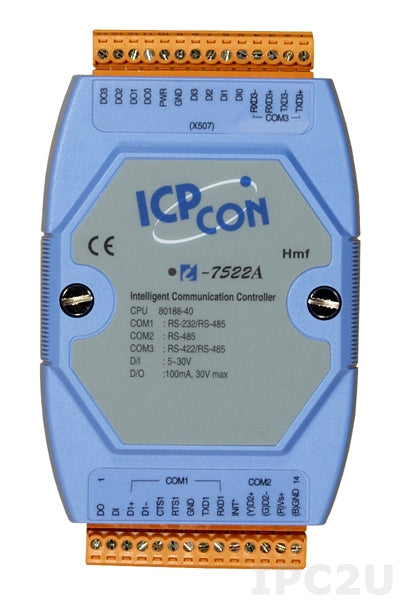

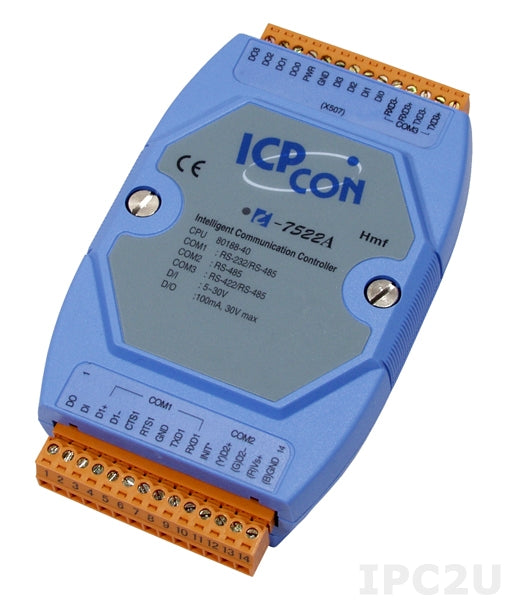

I-7522A

Name: I-7522A
Brand: ICP DAS
SKU: 01273400
Availability: InStock

ICP DAS

Ціна за запитом

Addressable one RS-485 to one RS-232 and one RS-422 Converter, cable CA-0910x1

Специфікація

Specification

Interfaces
COM Total	3
RS-422	1
RS-485	1
RS-232/485	1
Digital Input
Total channels of digital input	5
Level of Logic "1"	0~1 V
Level of Logic "0"	3.5~30 V
Type	Wet contact
Digital Output
Total channels of digital output	5
Type	Open collector
Output voltage	0~30 V
Max. load current	100 mA
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Dimensions and weight
Width	72 mm
Depth	35 mm
Height	123 mm
